Comparative tests of Illinois Central Railroad locomotives No. 920 and No. 940 (1909)
Gibson, Miles Otto, Lorenz, Frederick Ayres · leaf 26

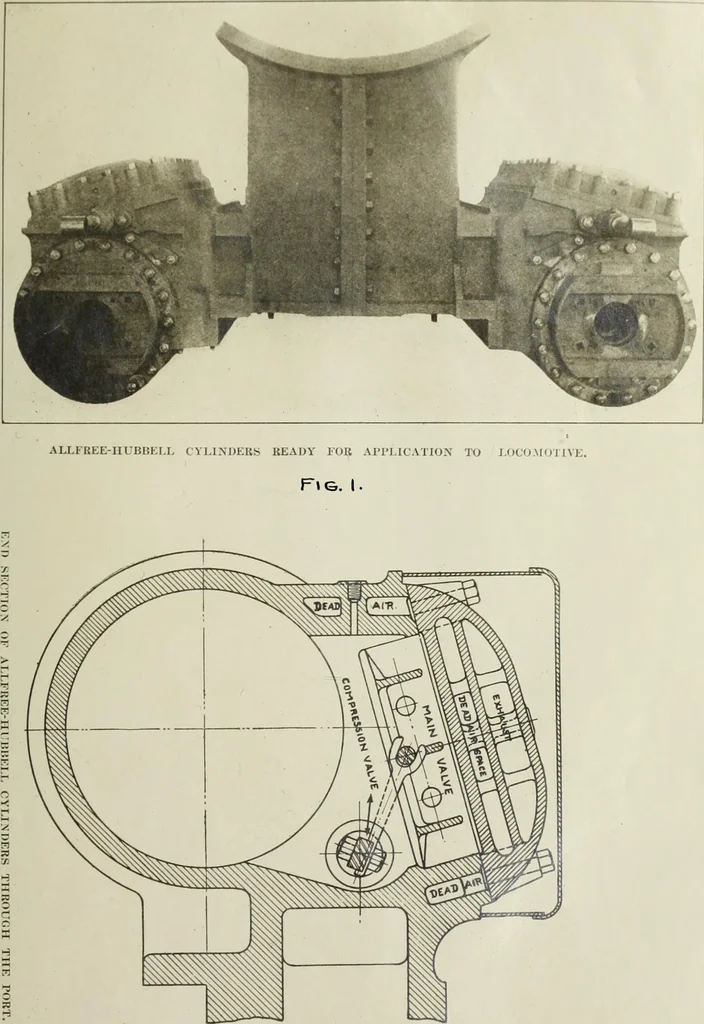

utside of the cylinder. Figure 1, Plate III. An examination of the photographs will show the methodsused for attaining the results and refinements mentioned above. Itwill be seen that the seat and valve are located at an angle of 15degrees with the transverse horizontal, and that the space… … Flo. 2., 9
Illinois Central Railroad Company · Locomotives · Theses
