The modern gas tractor, its construction, utility, operation and repair: a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction as well as practical application of tractors in the field (1919)
Pagé, Victor Wilfred, 1885-1947 · New York : Scientific American Pub. Co. · leaf 469

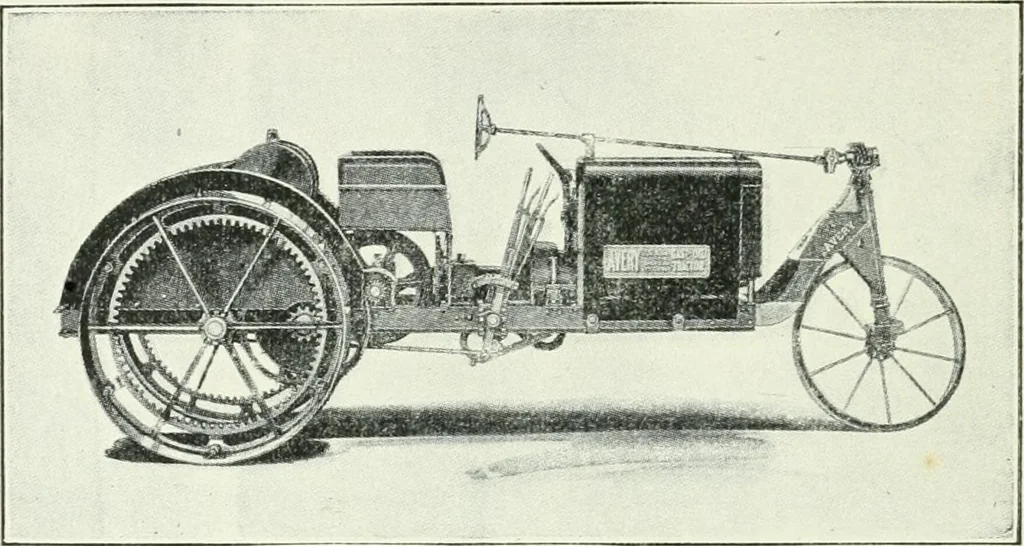

CarVjuretor,Water Capacity,Fuel-tank Capacity,No. of Speeds, 2 Forward, 1 Re-verse.Low Speed, 1.6 Miles per Hour. High Speed, 2.3 Miles per Hour. Belt Pulley Diameter, Belt Pulley Width, Bearings, Roller. Drive Wheel Diameter, 60 Ins. Drive Wheel Width, 24 Inches. Front Wheel Diameter, 36 Ins.… … Fig. 221.—Averv 5-10 Tractor. SPECIFICATIOXr Rated Tractive H.P., 5. Rated Belt H.P., 10. No. of Cylinders, 4. Cylinder Bore, 3 Inche.^. Piston Stroke, 4 Inche-s. Ignition, Magneto. Governor, Throttling. Clutch, Friction Disc. Cooling, Water. Carburetor, CJasoline. Water Capacity, Fuel-tank…
Farm engines · Internal combustion engines
