Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 319

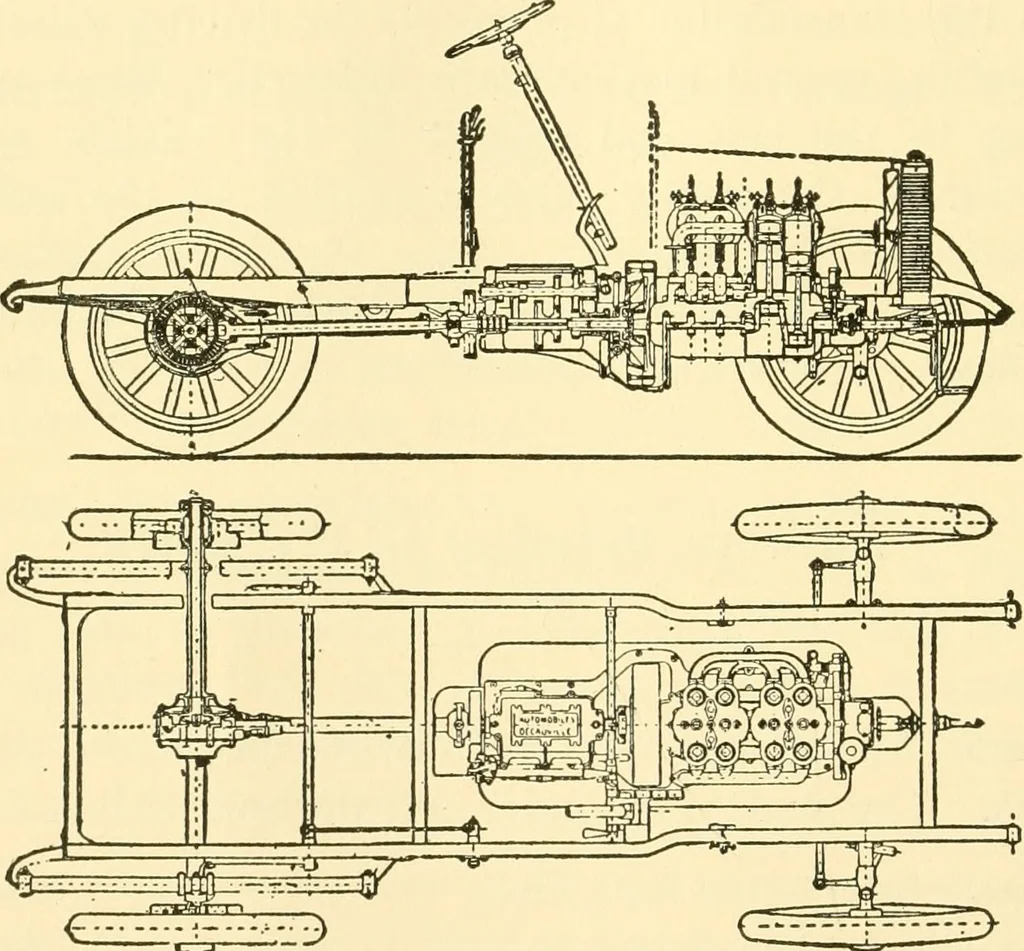

are required: i, universal joints, 2, tor-sion rod, and 3, radius rods. Ques. What is a universal joint ? Ans. A coupling for joining two shafts or parts of amachine endwise, so that the one may give rotary motion 292 A UDELS ANSWERS to the other when forming an angle with it, or may movefreely in… … Figs. 178 and 179,—Sectional elevation and plan of the Decauville car.showing general arrangement of a propeller shaft drive through bevel gearsto the rear axle. It must be remembered that the engine and gear box aremounted on the frame, and that there are springs interposedbetween the frame and…
Automobiles
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
