Modern instruments and methods of calculation : a handbook of the Napier Tercentenary Exhibition (1914)

Horsburg, E. M. (Ellice Martin), Napier Tercentenary Exhibition (1914 : Edinburgh, Scotalnd) · London : G. Bell · leaf 135

An illustration from Modern instruments and methods of calculation : a handbook of the Napier Tercentenary Exhibition, 1914, leaf 135

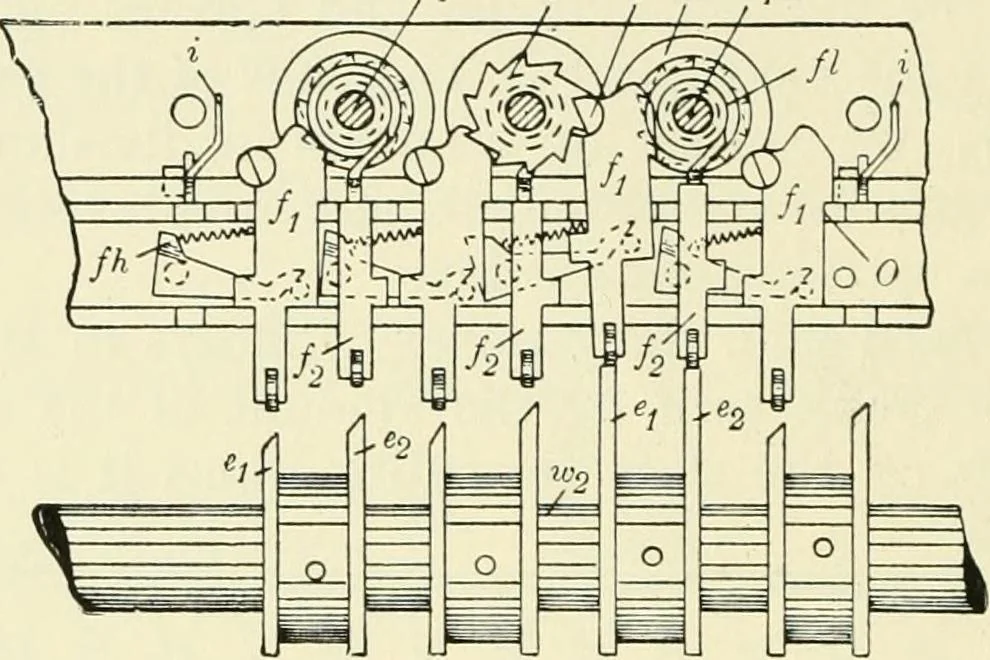

passed by them. If, however,a process for carrying over a ten has been initiated, the corresponding camfx strikes against the projecting flange// of the clutch m, is tipped by it to theside, and with the tooth v advances by a unit the cog wheel on the neighbouringaxle. This procedure is represented… … Fig. 45.—(f actual size.)
