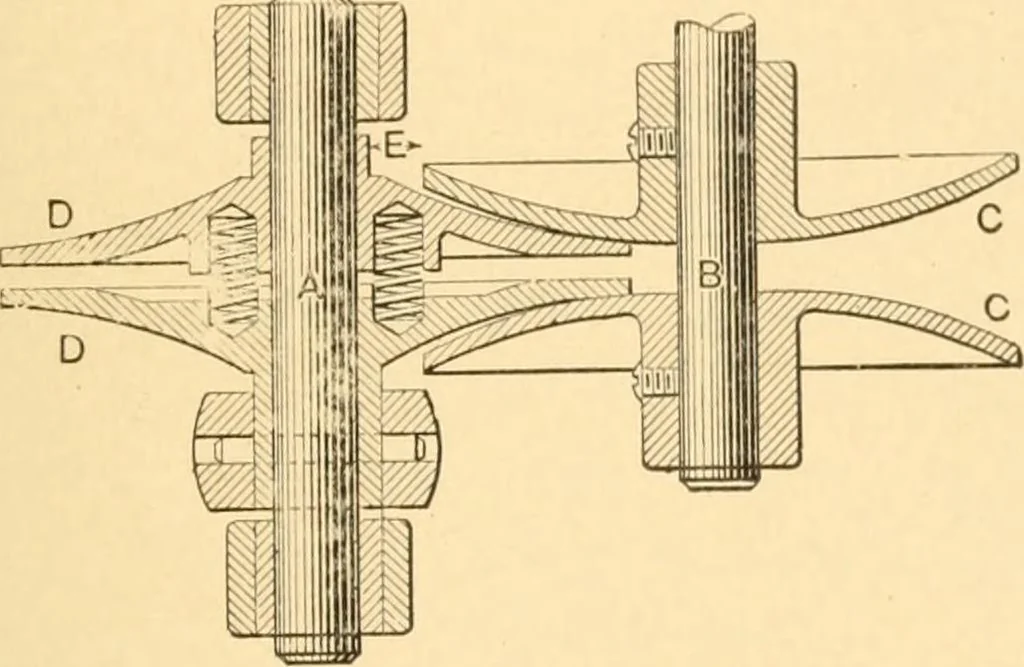

GEAR. The disks on theshaft B are permanently fastened in position by blind screws, and the tlanges C, C grip two other disksD, D, the latter having springsbetween them to force themapart and insure a good fric-tional contact with the disksC, C. The curves are circulararcs with different radii for… … Ymm 624. VARIABLE SPEED GEAR. In the engraving the shaft,driven direct or through back gears from the pulleys, is shown at a. This shaft carries at ^ a long pinion.At c is a nest of spur gears securedon the shaft d, through which themachine mechanism is actuated.Six gears will be noticed in…
