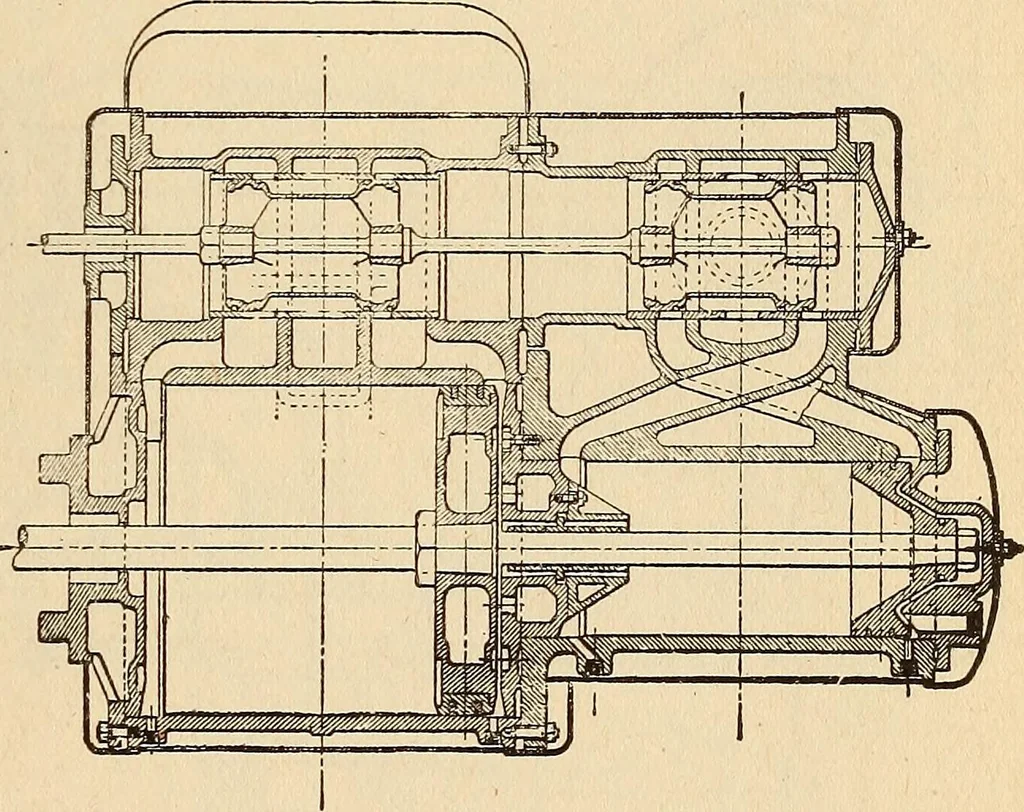

j^^ 13g shown in Fig. 136, in which the high-pressure cylinder is for-ward of the low-pressure cylinder, with both pistons onthe same rod. The steam chest is common to bothhigh and low-pressure cylinders, being open fromend to end and serving the purpose of a receiver. The valves are hollow and… … a98 LOCOMOTIVE ENGINEERING Piston Valves. On the high-pressure cylinders thevalves are arranged for internal admission, and on thelow-pressure cylinders for external admission. An ex-amination of Fig. 136 will show that this design ofvalves allows steam to be admitted to the same side ofeach piston…
