Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 109

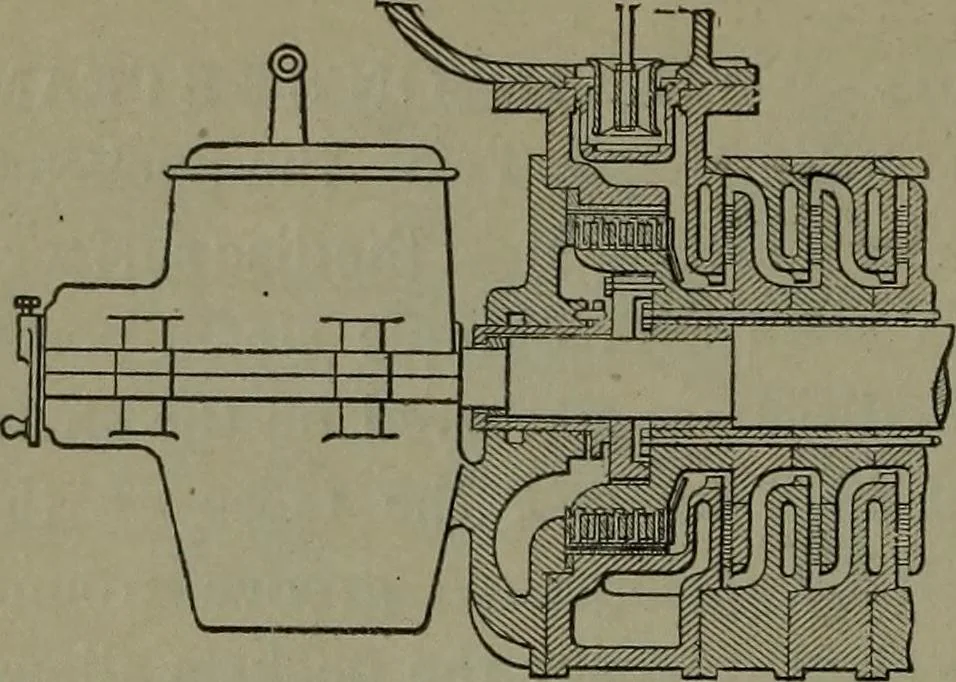

l. lOO STEAM POWER. 371. PARSONS STEAMTURBINE. —A series of discsfixed on a shaft with intersectingdiscs on the shell. The face of theshaft discs has several small bladesset at an angle with the radius.The outside fixed disks have a sim-ilar set of blades interlocking withthe revolving blades and… … Section V.STEAM APPLIANCES. INJECTORS, STEAM PUMPS, CONDENSERS, SEPARATORS,TRAPS, AND VALVES. STEAM APPLIANCES. Injectors, Steam Pumps, Condensers, Separators, Traps, and Valves. 372. PEERLESS IN-JECTOR.—An exhauststeam injector. A hinged sec-tion of the combining tubeallows a free flow of the…
Mechanical movements
