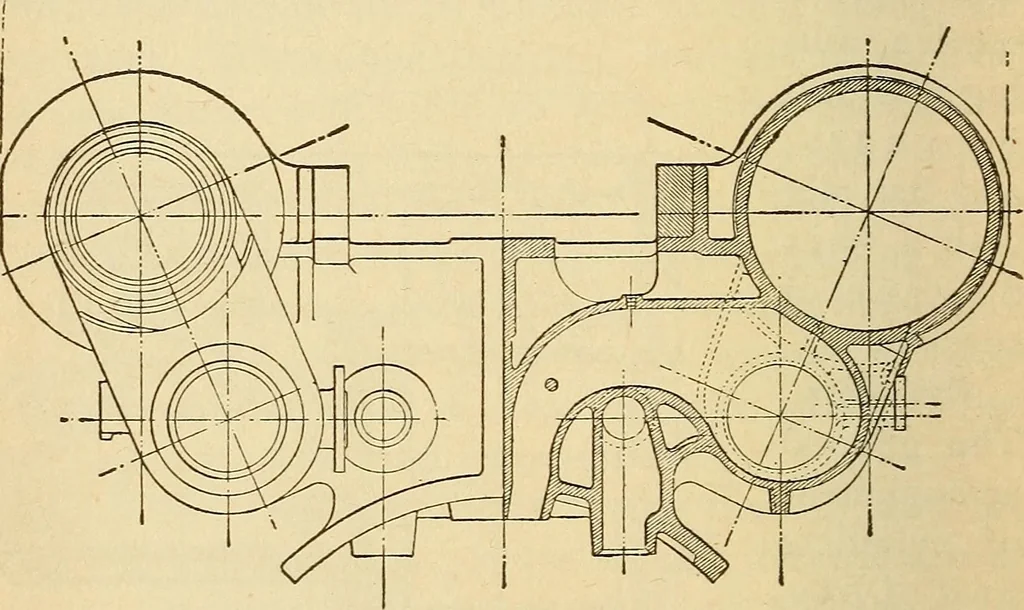

a98 LOCOMOTIVE ENGINEERING Piston Valves. On the high-pressure cylinders thevalves are arranged for internal admission, and on thelow-pressure cylinders for external admission. An ex-amination of Fig. 136 will show that this design ofvalves allows steam to be admitted to the same side ofeach piston… … Figure 137 Low-Pressure Cylinders. The saddle and cylinders are shown in Fig. 137 in front view and vertical sec-tion, in which the coring is shown for steam andexhaust passages. The saddle has an opening coredinto the steam-pipe passage, extending from front toback on each side, where there is a…
