Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 299

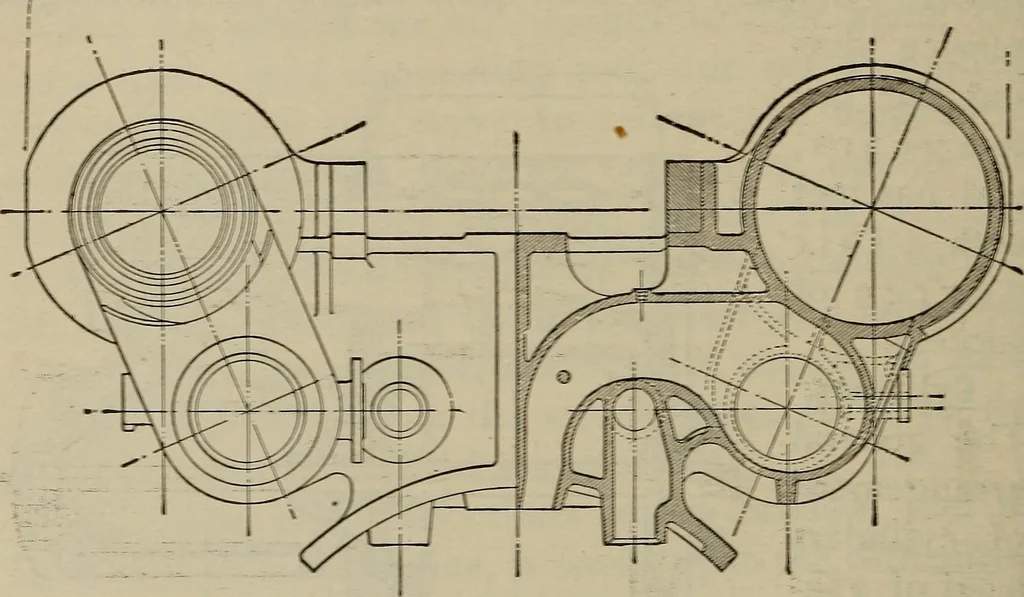

Figure 136 2QS LOCOMOTIVE ENGINEERING Piston Valves. On the high-pressure cylinders the valves are arranged for internal admission, and on thelow-pressure cylinders for external admission. An ex-amination of Fig. i;5 will show that this design ofvalves allows steam to be admitted to the same side… … Figup.e 137 Low-Pressure Cylinders. The saddle and cylinders are shown in Fig. 137 in front view and vertical sec-tion, in which the coring is shown for steam andexhaust passages. The saddle has an opening c<:redinto the steam-pipe passage, extending from front toback on each sice, where there…
Locomotives
