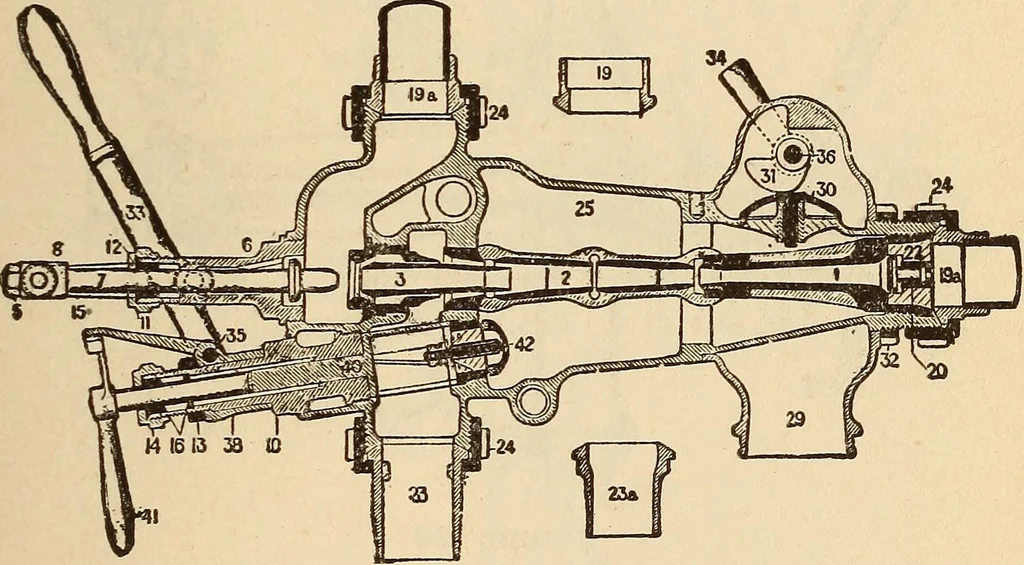

S, ETC. 345 matically. All the valve seats that may need refac-ing can be removed; the body is not subject to wearand will last a lifetime. The action is as follows: Steam from the boiler i«?admitted to the lifting nozzle by drawing the startinglever (33) about one inch, without withdrawing theplug… … Figure 158The Self-Acting Injector, Class N Improvedp. r. r. standard sellers standard form Jcombining tube (2) and into the overflow chamber, lifts:he overflow valve (30), and issues from the waste pipe[29). When water is lifted the starting lever (3^?) isirawn back, opening the forcing steam…
