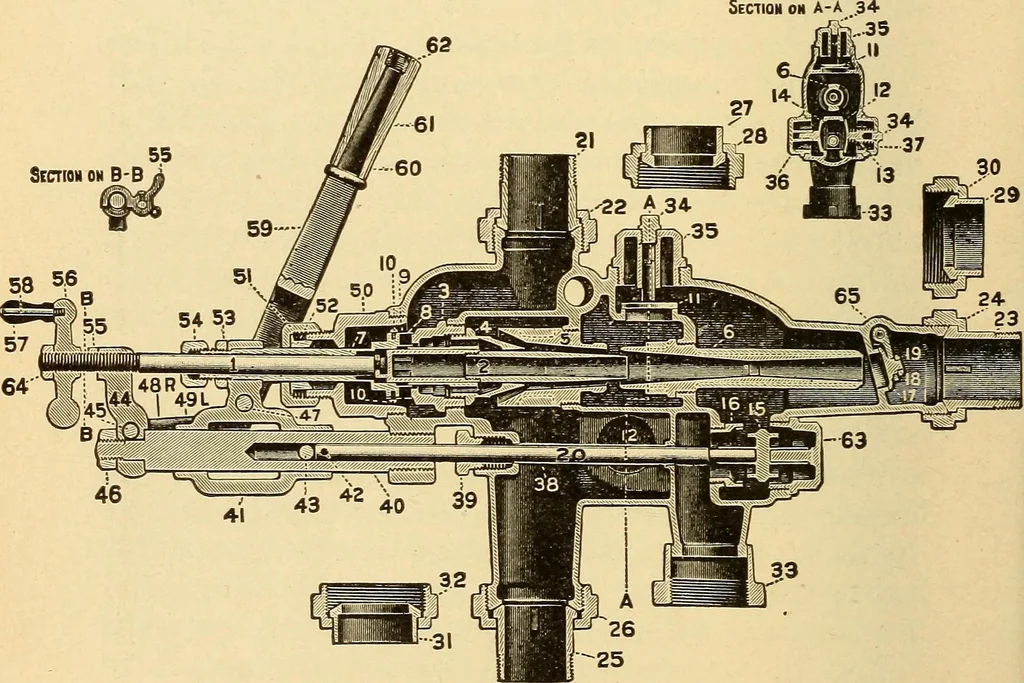

a different manner fromany other injector. In the Lunkenheimer injector theamount of steam required to lift the forcing water isreduced in direct proportion to the amount o( water 164 LOCOMOTIVE APPLIANCES. discharged. In other forms of injectors the amountof forcing steam remains constant, while… … Fig. 11.Lunkenheimer 99 Model Injector. The grading, as described in detail below, is accom-plished by moving the steam tube (2) in and out bymeans of the crank handle (56) situated at the backend of the machine. Mode of Action.—In starting, lever (59) is drawn LOCOMOTIVE APPLIANCES. 165 back…
