Modern locomotive engineering, with questions and answers .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co · leaf 364

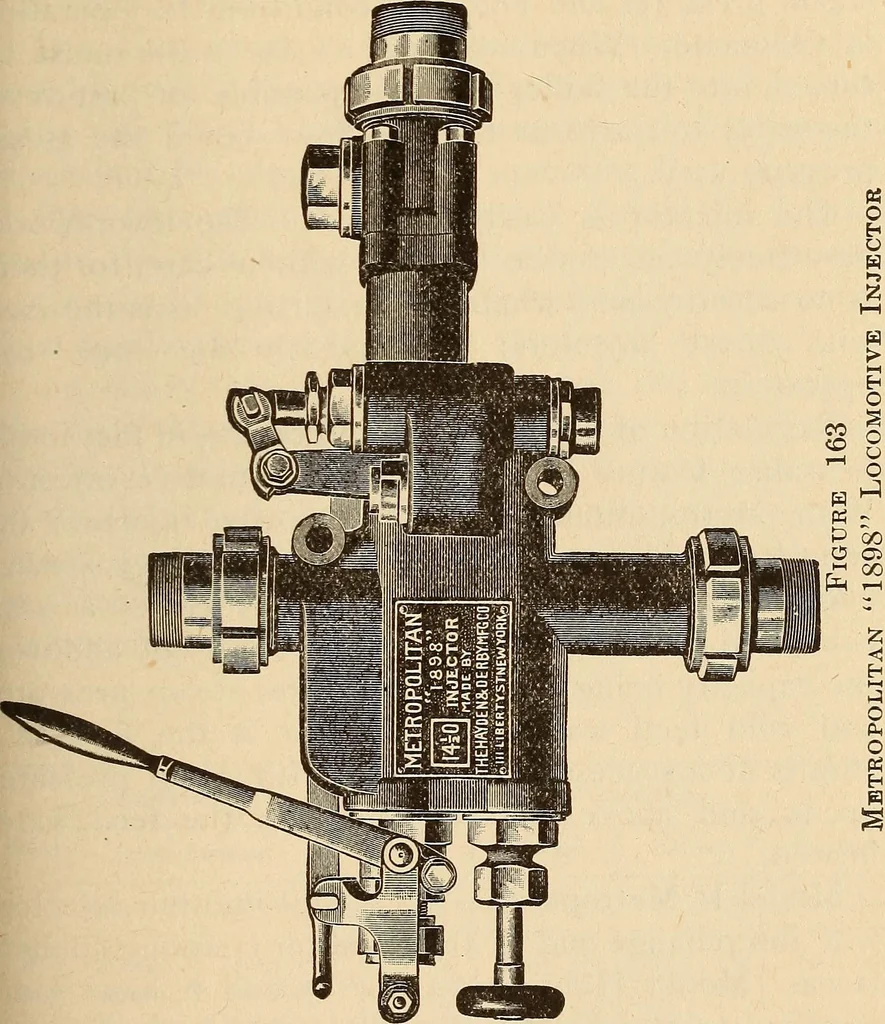

e water and delivers itto the forcing set of tubes under pressure, which in turnforces the water into the boiler. The lifting set of tubes act as a governor to the forc-ing tubes, delivering the proper amount of waterrequired for the condensation of the steam, thusenabling the injector to work… … 358 LOCOMOTIVE ENGINEERING This injector will start with 30 to 35 lbs. steam pres-sure, and without any adjustment of any kind will workat all steam pressures up to 300 lbs. In fact, at allsteam pressures and under all conditions its operationis the same. When working,, all the water must beforced…
Locomotives
