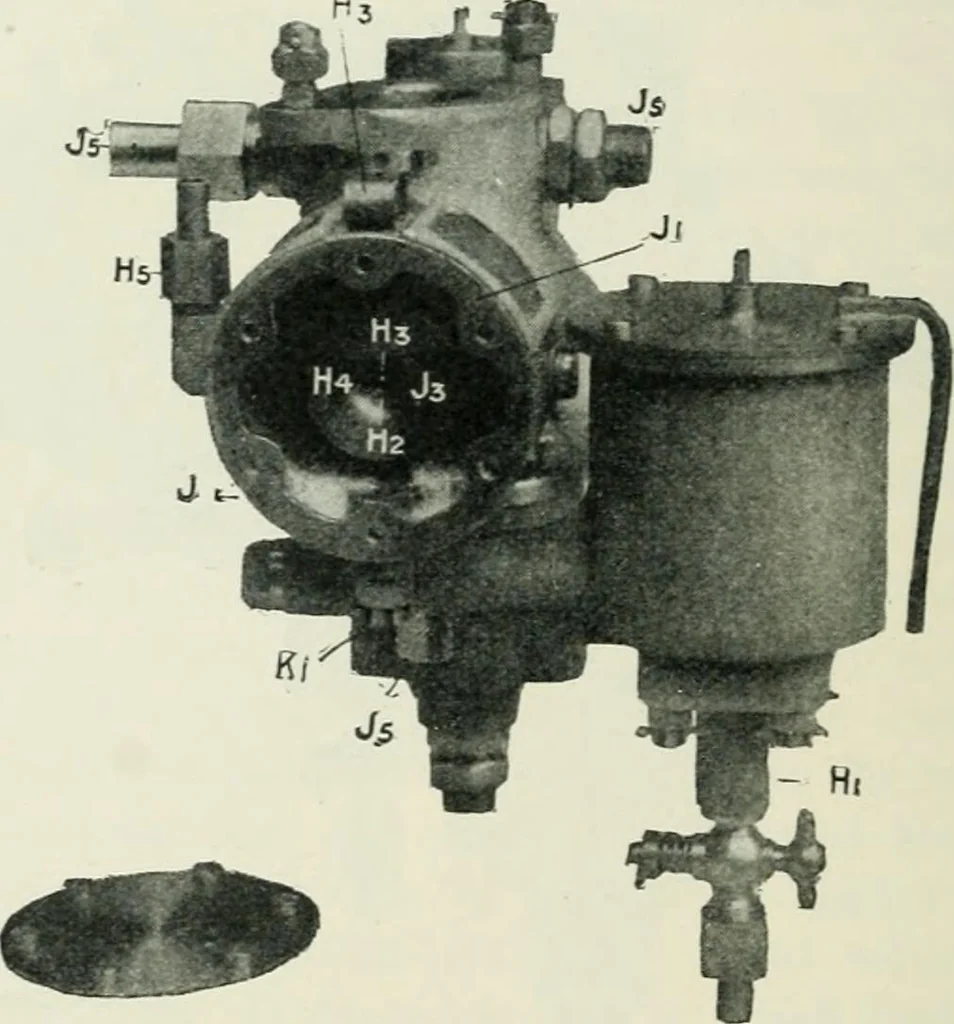

lughas a hole drilled through its centre, through which the Ii8 MOTORS AND MOTOR-DRIVING mercury passes, and also acts as a guide for a spindle carryinga wood float, while at its upper end it supports a piston valveinside the cap k 3 (fig. 11). The chamber K i (fig. 11) isfilled with mercury to a… … Fig. 12 End view of the Crossley .\utomatic Carburetter, with cover plate J 2 removedto show the induction cone j 3, spray jet H 2, needle valve H 3, and thesuction jet H 4 (fig. 12), while the space outside the partition is in opencommunication, through a vent hole k 10 (fig. 11), with…
