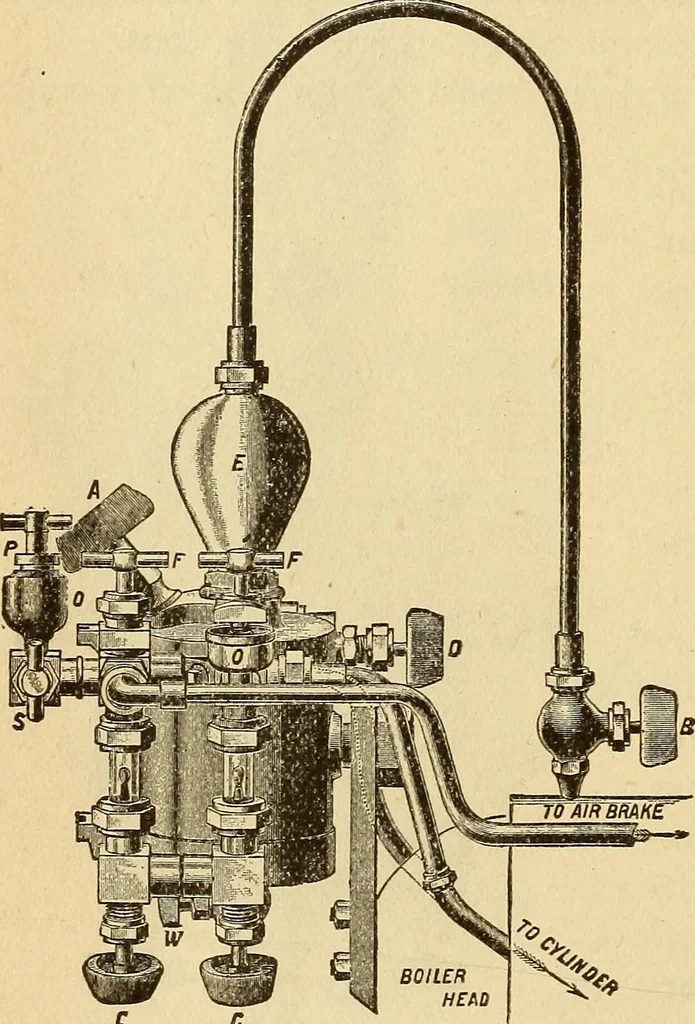

pen while the locomotive is in service. To Start Lubricator, i. Be sure that the regular boiler valve is open. Then open steam valve B at top of condenser grad-ually until wideopen and keepwide open whilelubricator is inoperation. Al-1 o w sufficienttime for con-denser andsight-feed glass-es to… … c c Figure 199 New Nathan Lubricator side view with steam and tallow pipes Close valve X and fill body of oilerand open valve H. To Refill. Always close valves E E and L inadvance of valve D. Open drain plug G, then fillerplug O. Refill and proceed as before. INJECTORS, STEA:M GAUGES, ETC. 409…
