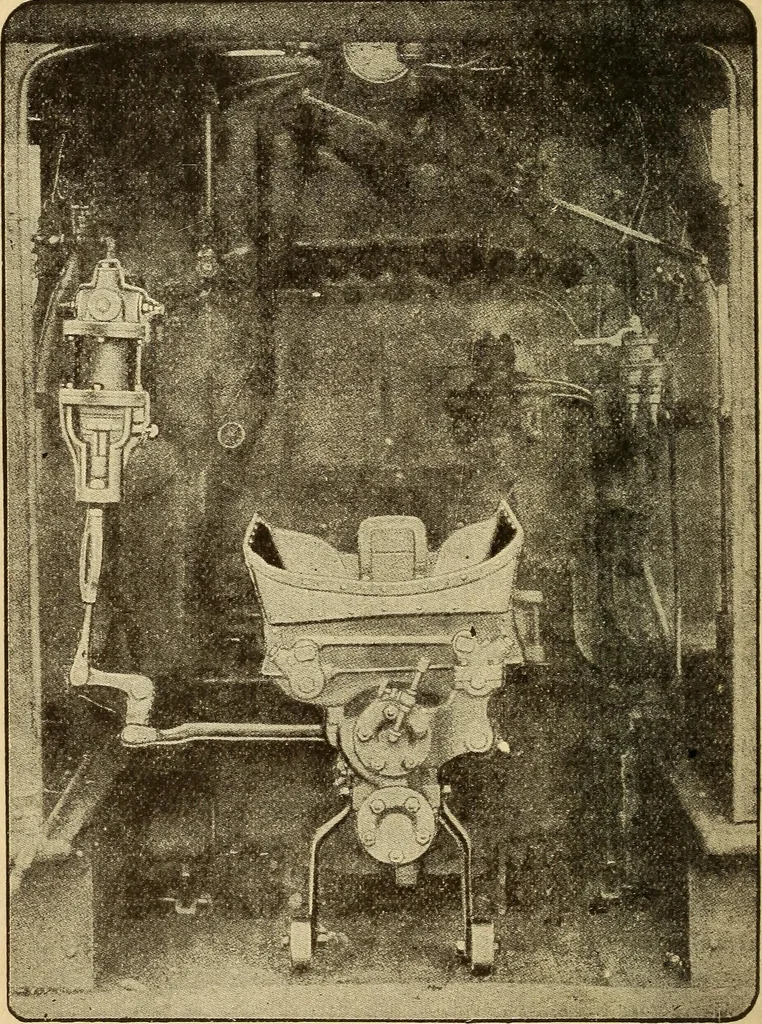

s a transverse view from Fig. 221, and shows the headof the plunger and its position in the trough at theend of each stroke; the conical deflector, attached tothe inside of the door, which spreads the coal in thefire-box, and when the stoker is removed, maybe turn-ed up to close the hole occupied… … FiGimE 220 INJECTORS, STEAM GAUGES, ETC. 453 in which the plunger travels, and the exhaust steamport are likewise shown in this illustration. Fig. 223 shows the hopper raised, and reveals one ofthe twin spiral conveyors which carry the coal forward;it also shows the opening through which the coal…
