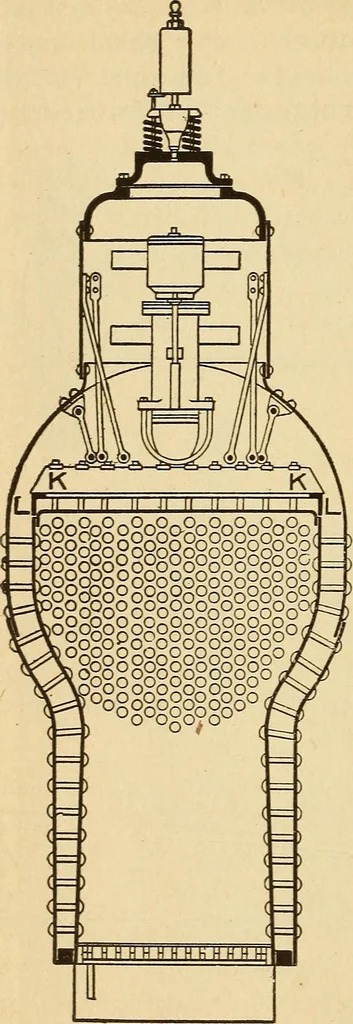

Figure 9 except that the thread has not yet been cut on the enathat screws into the fire sheet. The Tate flexible staybolt is manufactured by the Flannery Bolt Company,Pittsburg, Pa. LOCOMOTIVE ENGINEERING … Figure 10 It is also necessary tostrengthen the flat top orcrown sheet of the fire-box.There are three commonmethods by which this isdone: first, by crown bars;second, by radial stays, andthird, by the Belpairesystem. In Fig. 6 the crown barmethod is shown, K-K beingthe ends of the crown barsFig.…
