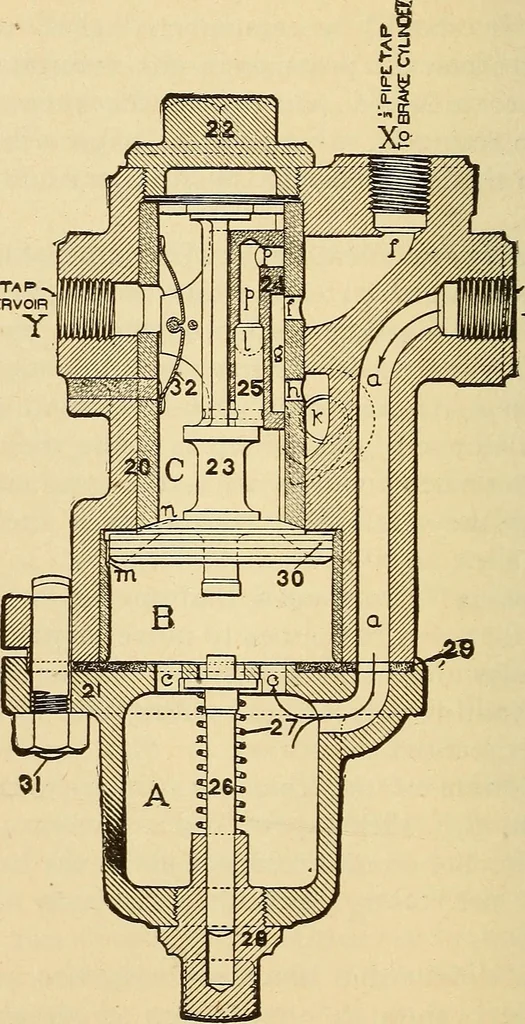

rked //, leads to the atmos-phere. In the slide valve there are also two ports; onepasses clear through the valve, as shown by theletters /, p-p, and the other is a groove cut in the bot-tom of the valve, and marked g, and when the valve ismoved toward the left end of chamber C (in otherwords,… … 4>IPCTAF^TOTHAW P^ w Figure 233New Style Plain Triple Valve vave, and valve seat and on through pipe connectiorX directly into the brake cylinder; and when the slide AUTOMATIC AIR BRAKES 547 valve is in the opposite end of chamber C the groove^in the bottom of the slide valve connects the two…
