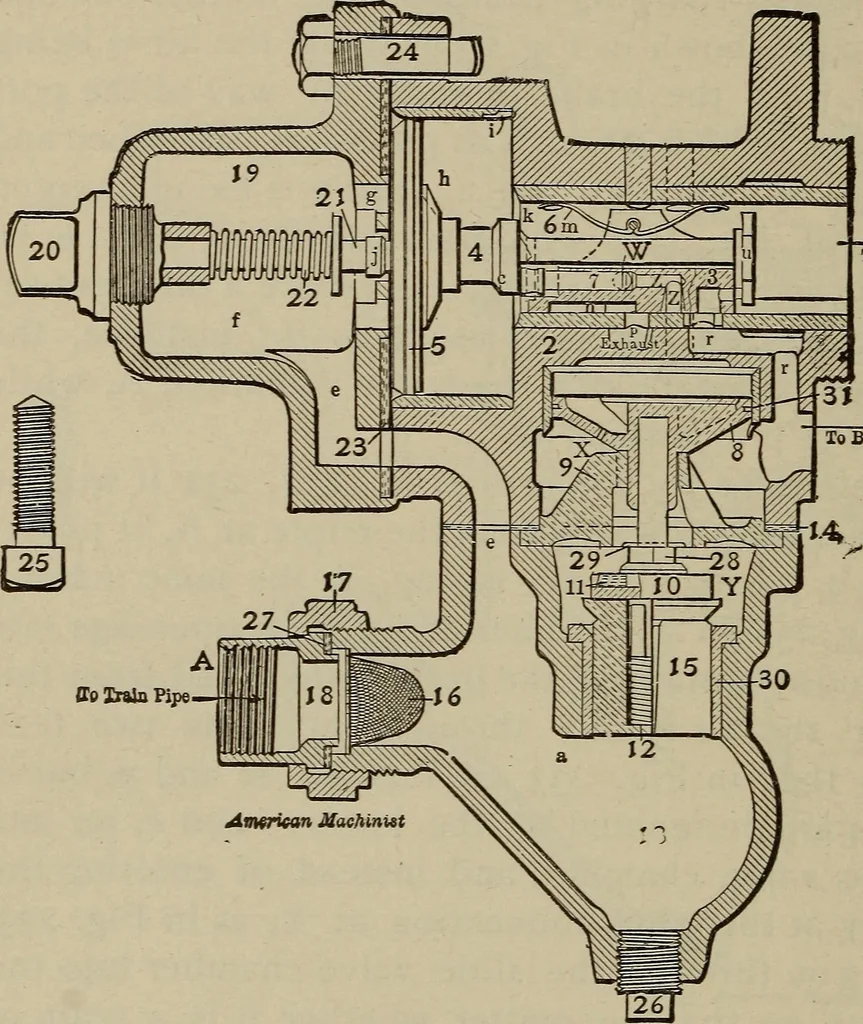

the opposite side. Thedifference, therefore, between the two kinds of triplevalves is the emergency attachment which will beexplained by reference to Fig. 235. Emergency Position of Quick-action Triple Valve. A $6o LOCOMOTIVE ENGINEERING sudden reduction of trainpipe pressure is necessaryto cause… … To Au3lSL*Reservoi* To Brake Cylinder ffo Xr&ia Pipe. Figure 235Quick-action Triple in Emergency Position to stop it from making its full stroke, and as it has nowtraveled further than it did in service position, theslide valve has also been moved a correspondinglygreater distance on its seat,…
