Modern locomotive engineering, with questions and answers .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co · leaf 728

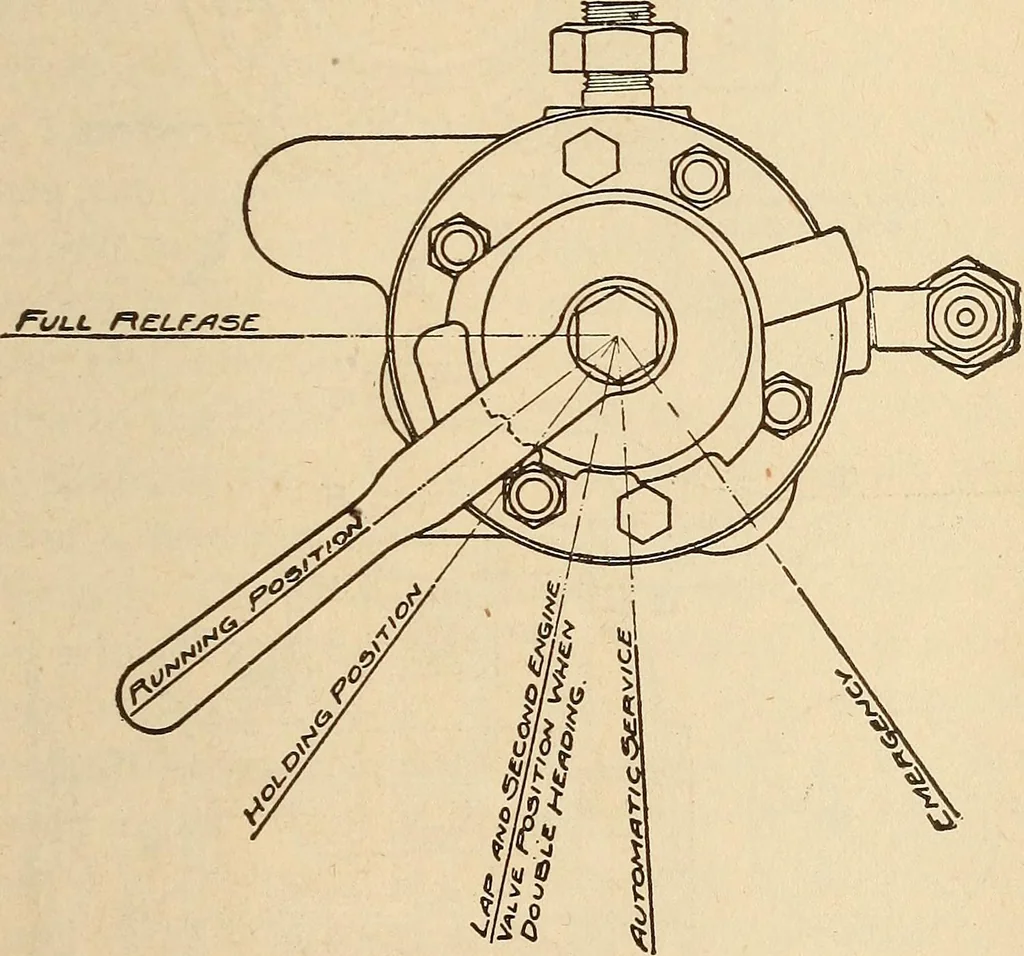

CTIOXS:-Feed-Valve Pipe; MR—Main-Reservoir Pipe; GO—To Gov-ernor- DH—Double Heading- Pipe; EX—Exhaust; AC—Appli-cation-Chamber Pipe; BP-Brake Pipe; GA-Duplex AirGauge; ER—Equalizing Reservoir ET BRAKE EQUIPMENT 699 Fig. 313 shows two views of this valve similar tothose of Fig. 311, with the… … FIG. 312 face ; 0 is the exhaust cavity; x is a port in the face ofthe valve connecting with 0; h is a port in the face whichpasses over cavity k and connects with exhaust cavity 0;n is a groove in the face. Referring to the ports in therotary-valve seat, d leads to the feed-valve pipe; b and clead…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
