Practical instructor and reference book for locomotive firemen and engineers: a practical treatise .. (1916)
Lockhart, Charles F. (Charles Fulton), b. 1872 · New York, The Norman W. Henley publishing co. · leaf 229

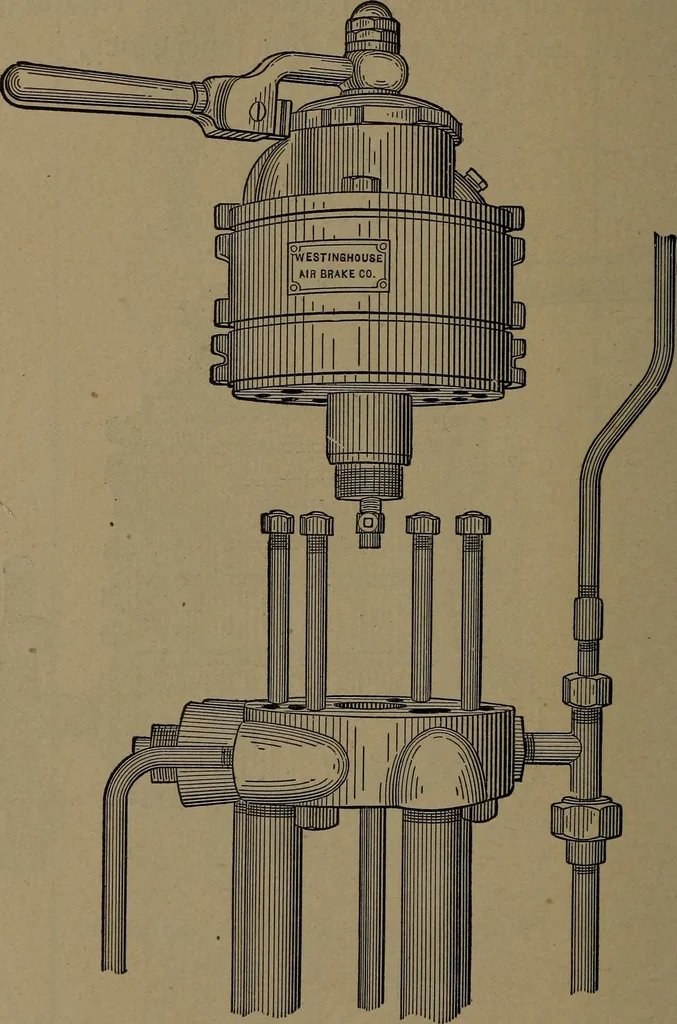

Fig. 69.—H-6 Automatic Brake Valve. 616. The names and numbers of the parts of this brakevalve are as follows:—2, bottom case; 3, rotary valve seat;4, top case; 5, pipe bracket; 6, rotary valve; 7, rotaryvalve key; 8, key washer;^ 9, handle; 10, handle latch- 15 226 H-6 AUTOMATIC BRAKE VALVE … Fig. 70.—H-6 Automatic Brake Valve Removed from its Pipe Bracket H-6 AUTOMATIC BRAKE VALVE 227 spring; n, handle latch; 12, handle latch screw; 13,handle nut; 14, handle lock nut; 15, equalizing piston;i6; equalizing piston packing ring; 17, valve seat uppergasket; 18, valve seat lower gasket; 19,…Locomotives
