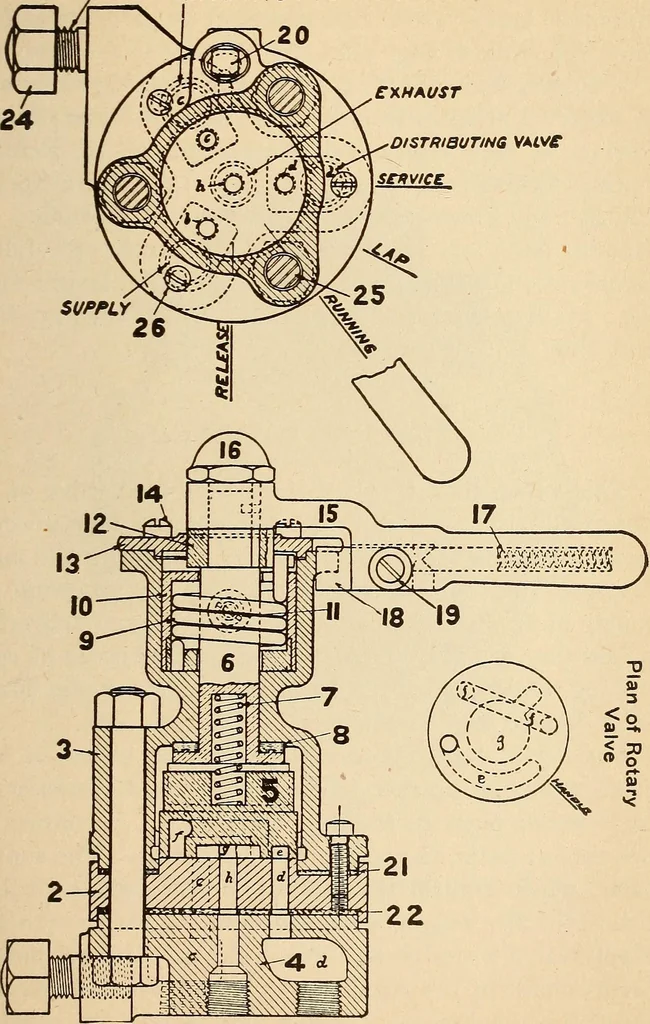

ports d, g and h to the atmosphere. In order to prevent leaving the handle in the releaseposition, and thereby make it impossible to operate thelocomotive brakes by the automatic brake valve, spring9 automatically returns handle 15 from the release to therunning position. The purpose of the oil… … FIG. 316. INTERIOR VIEWS OF THE INDEPENDENTBRAKE VALVE 7IO LOCOMOTIVE ENGINEERING same considerations as those mentioned concerning theautomatic brake valve. The names of its parts are as fol-lows, referring to Fig. 316. 2, Rotary-Valve Seat; 3, Valve Body; 4, Pipe Bracket;5, Rotary Valve; 6,…
