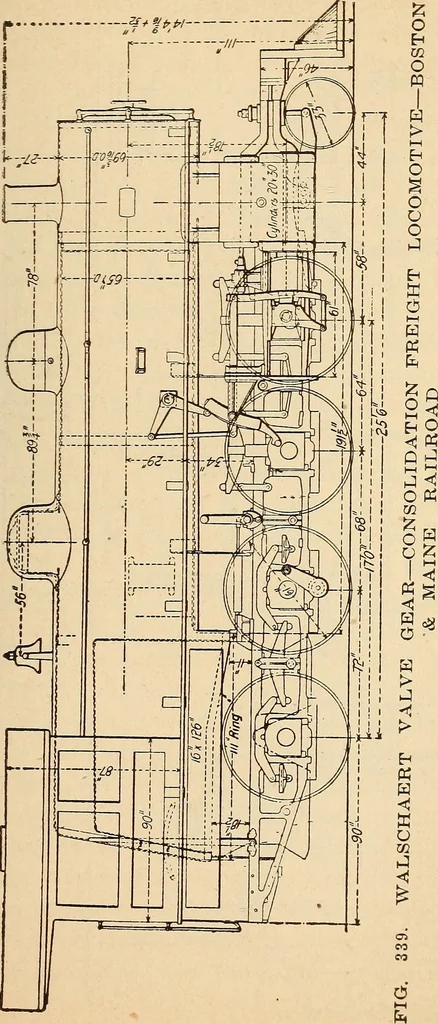

FIG. 338. A CONVENIENT GAUGE FOR SETTING THEECCENTRIC CRANK In Fig. 337 the eccentric and admission valve circlesare shown at different cut-ofifs where each set of linesand circles is governed by the same explanation as thoseof Fig. 336, where the admission points S, S/ S^, S^, cor-respond to the… … 762 LOCO^IOTIVE ENGINEERING
