Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 416

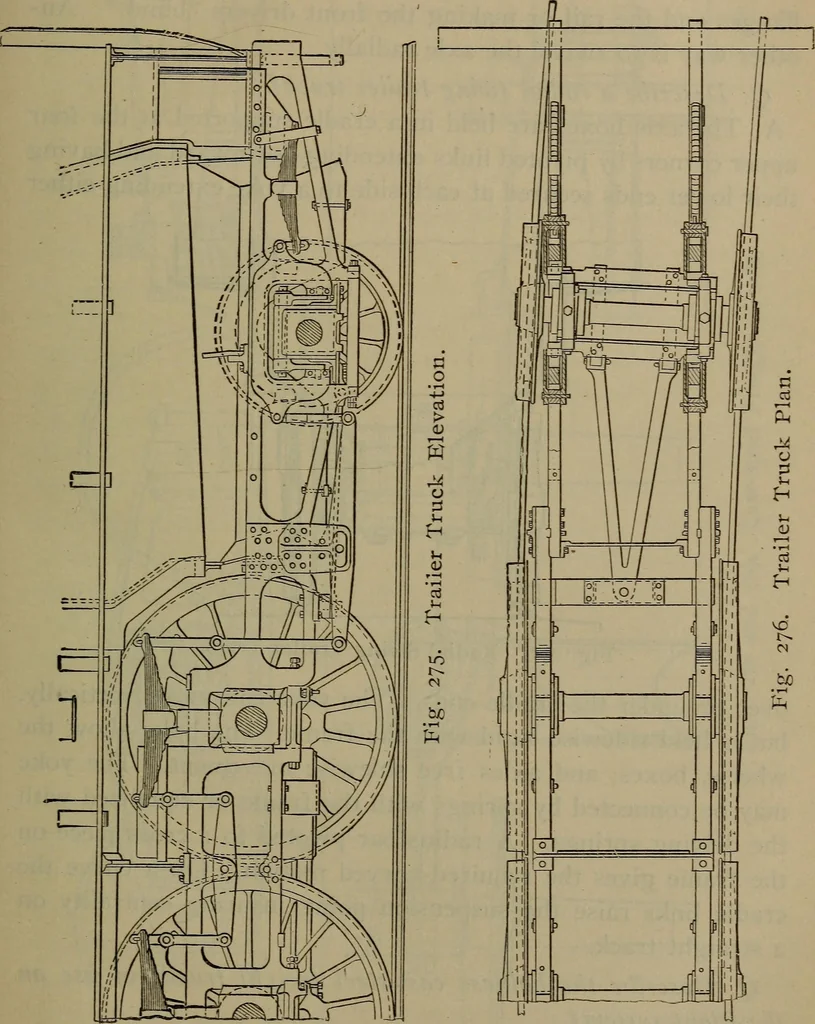

and Q. Ry. (No.687, for example) with six coupled 64-inch drivers, a two-wheeled front and a two-wheeled rear truck; and the A., T.and S. F. Railway (No. 1,000) 17 inches and 28 inches by 28inches; further, in the Mikado type, such as the B. W. andG. F.s Great Falls engine, eight coupled wheels (50… … 410 LOCOMOTIVE CATECHISM. A. Where the trailers are rigidly held between the framesas in the Atlantic type, extra play is allowed between theflanges and the rail or making the front drivers blind. An-other way is to swivel the axle radially. Q. Describe a radial swing trailer truck?A. The axle…
