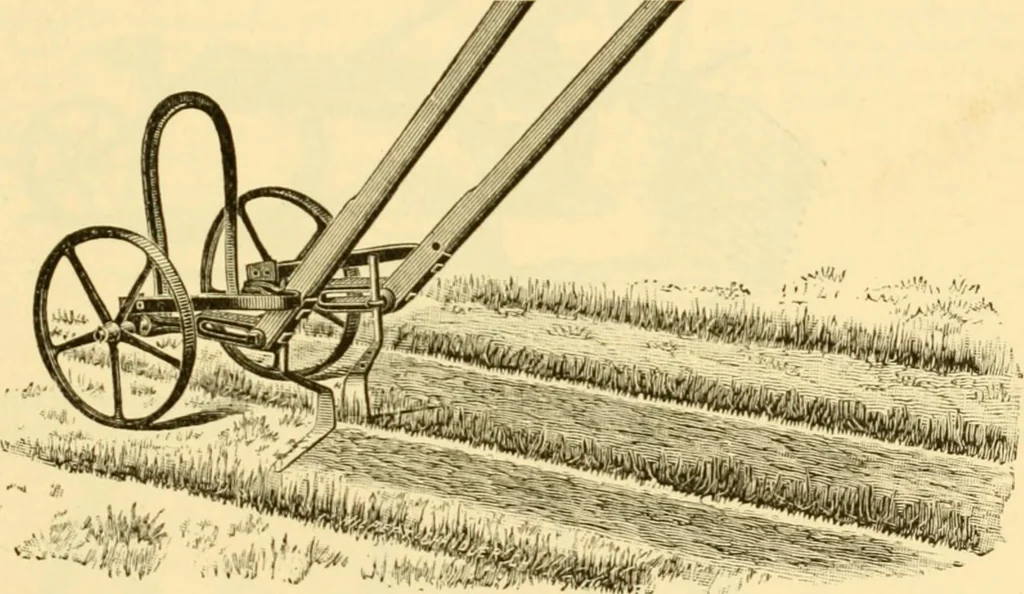

Fio. 9.—Weirs tongueless cultivator. ment, by the alisence of a tongue. It has lateral adjustment of hitch to insure the properdirection for the wheels, in case the team used is unequal in size and step. Tke Deere Garden-IIoe (Fig. 10) has two short beams with handles adapted, to propel the … FiQ. 10. - Dueres garden hoe. machine with any of its different attachments, shown in Fig. 11. The handles are con-nected also with the arch in front by side-springs, permitting instant adjustment to and from
