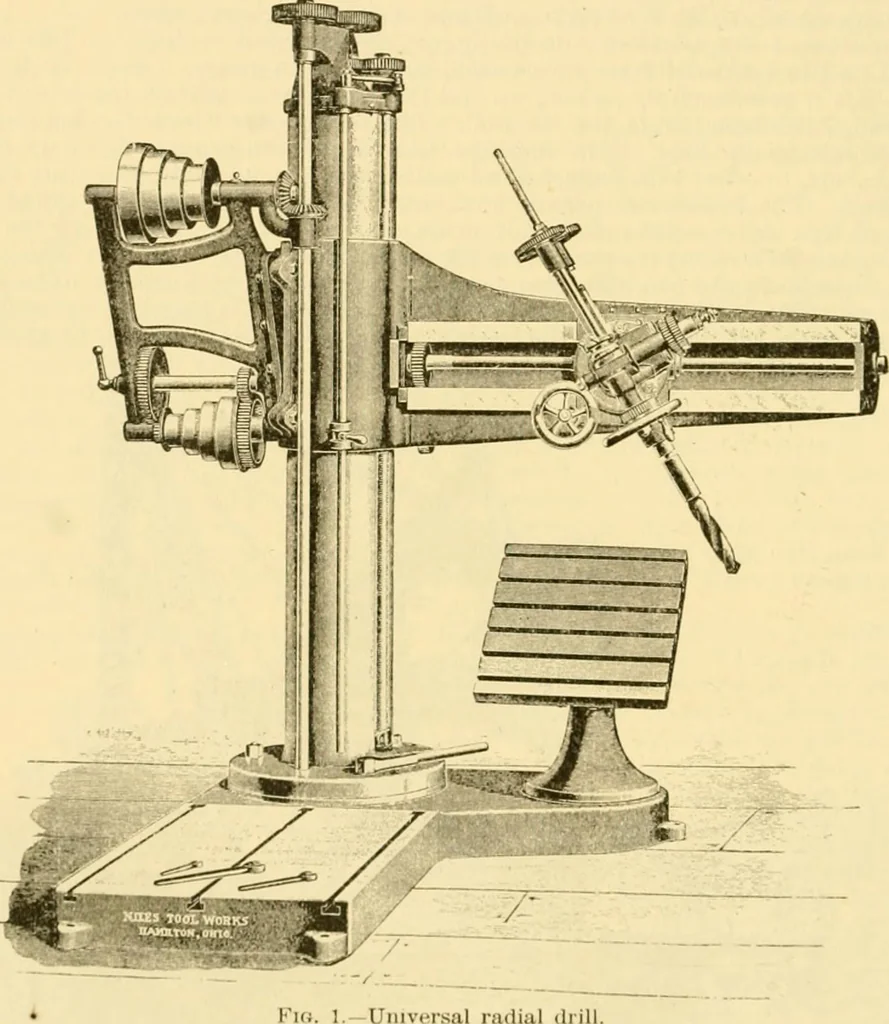

ch is secured to the base-jjlate. carries a radialarm, whicli can be clamped in any position. The machine is driven from an overhead coun-ter-shaft operated by bevel-gearing, and by a central spur-gear seen at the top of the column.This also communicates motion through tumbler-gearing to the screw,… … Univer.sal radial drill. ing. The arm is in form similar to a box-girder, and is in one ]>i(He. The drill-head is se-curely gibbed uiion the arm, and is adjustable to any position thereon. It is also adjustableto any angular position upon its saddle. ,SV/i.s/7//v. /;,///._IOjrr. 2 represents a…
