Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 145

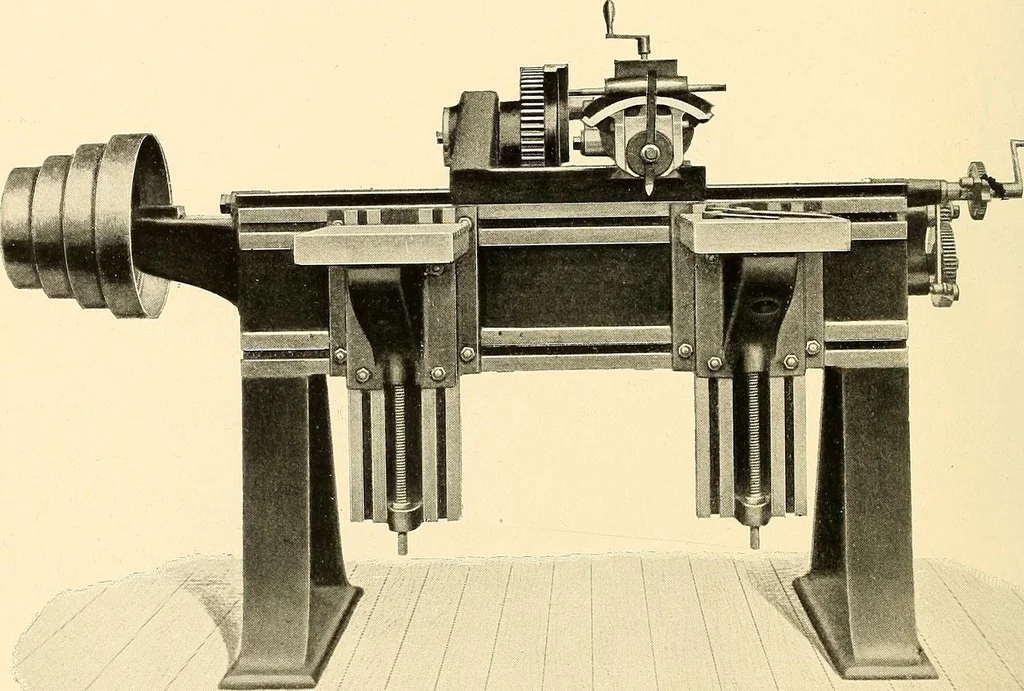

t and loose pulleys oncountershaft 24 by 5^2 face, and should make 400 revolutions per minute. Note.—The cutter-head and saddle of this machine were designed to meeta demand for a more powerful and more rigid tool than any in the market, andspecial attention was paid to strength of parts and… … «» 12 SHAPING MACHINE. Stroke adjustable from o to 12, with Whitworth motion, giving uniformcutting speed and quick return. Shaping bar adjustable 18 in addition to thestroke. Bed 4 ft. io>3 long. Movement of .saddle on bed, 48. Tables adjust-able vertically and horizontally. Extreme distance…
Machine-tools · Machinery
