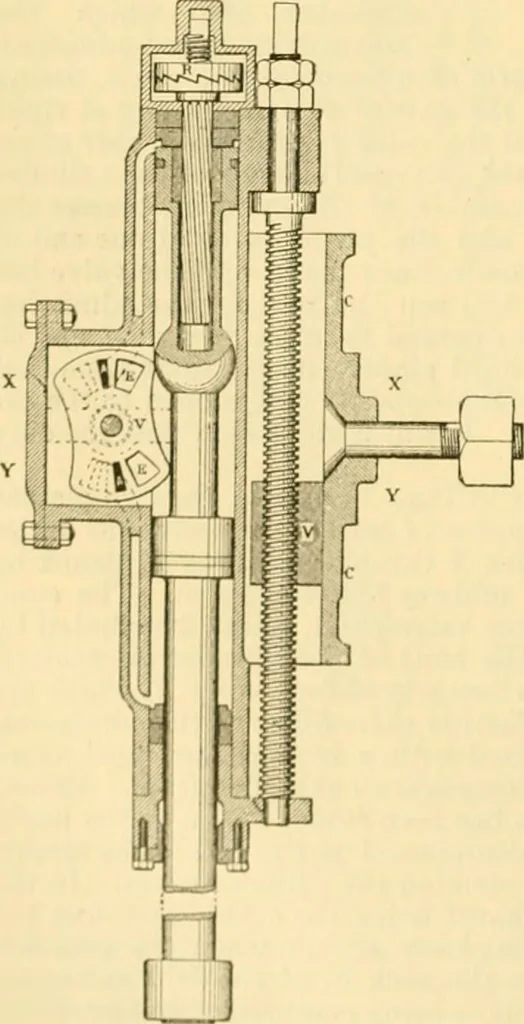

rward against the rotating half by a singlespring. This arrangement admits of the clutch beingfrom 1 in. to H in. larger in diameter than a ratchet-wheel in the same cylinder-cover, iiecause no space isrequired for pawls and springs outside the circumfer-ence of tiie ratchet. The strain, therefore,… … DRILLS, ROCK. 195 L in the cradle C, which are so arranged that any movement of the cylinder in the cradle canbe readily adjusted in a few minutes by these loose liners; and provision is made for them inthe construction of the cradle. The feed is given by a screw worked by hand. A 3-in.…
