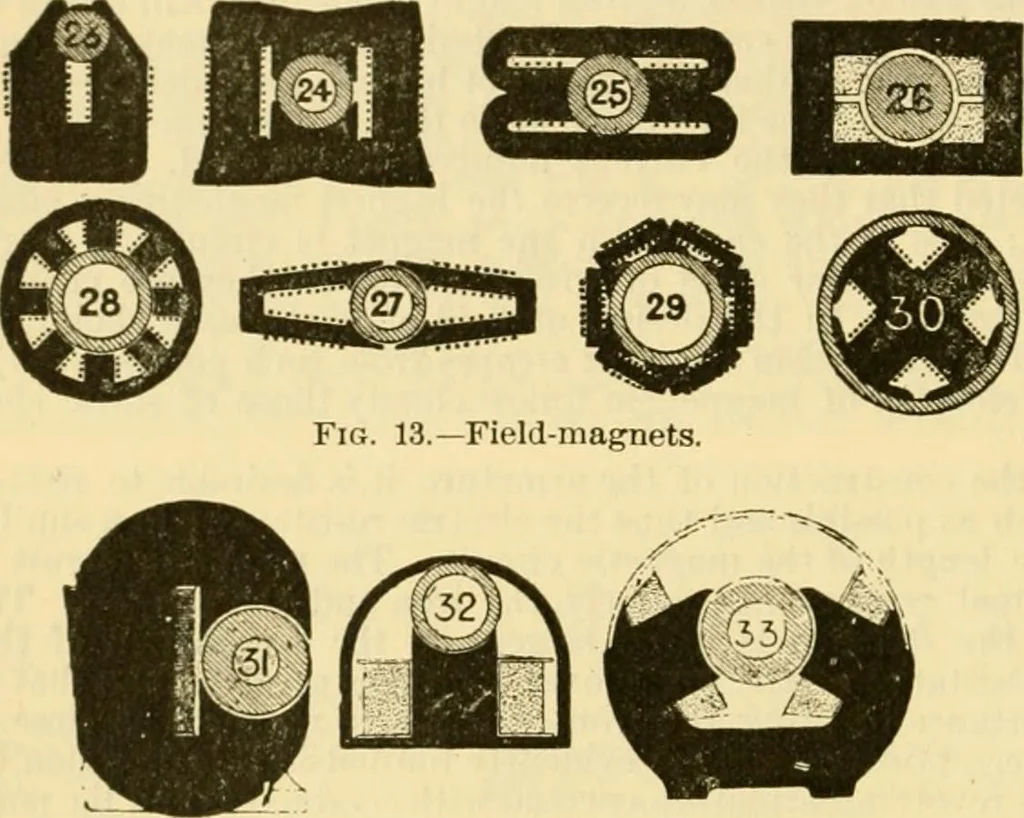

l forms liave l)een employed by Kennedy ( iron-clad dynamo), and l)y Tjahnu^yer ami by Wenslnim. No. 2:! (Iig- b!) is a type which, used longago by Sawyer and by liontin, has recently become ii favorite one, having been revived almostsimultaneously by (iramme (type superieur). by Kapp, by Siemens… … Fig. 14.—Field-magnets. DYNAMO-ELECTRIC MACHINES. 205 to shape. No. 26 is designed by Prof. George Forbes. The iron-work is in two halves ; thecoils, which are entirely inclosed, are so placed as to magnetize the armature directly, onecoil occupying all the available space between the field-magnet…
