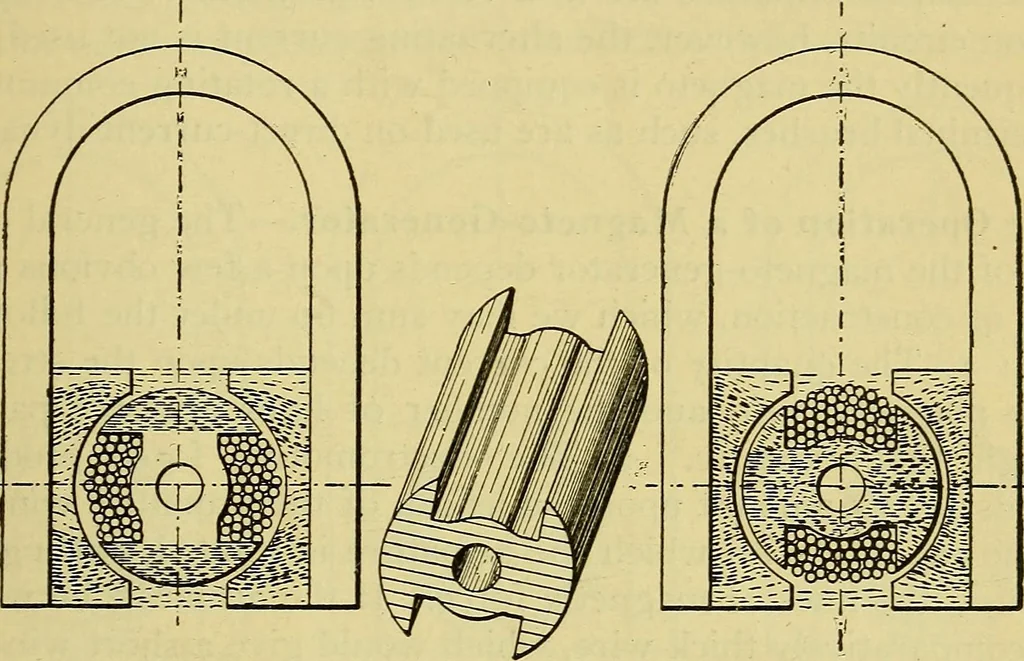

e-shaped armature wound about with a suitable length offine insulated wire. As may be seen in the accompanying illus-tration, the lines of force extending between the poles of themagnets are variously distributed according to the point occupiedby the armature in its rotation. It may thus be… … Fig. 185.—Diagram of the Construction and Theoretical Operation of aTypical Magneto-Generator. Between the prongs of the horsehoe mag-nets, the shuttle-shaped armature, shown at the centre of the figure,rotates on a suitable spindle. This armature is wound from end toend with insulated wire, so…
