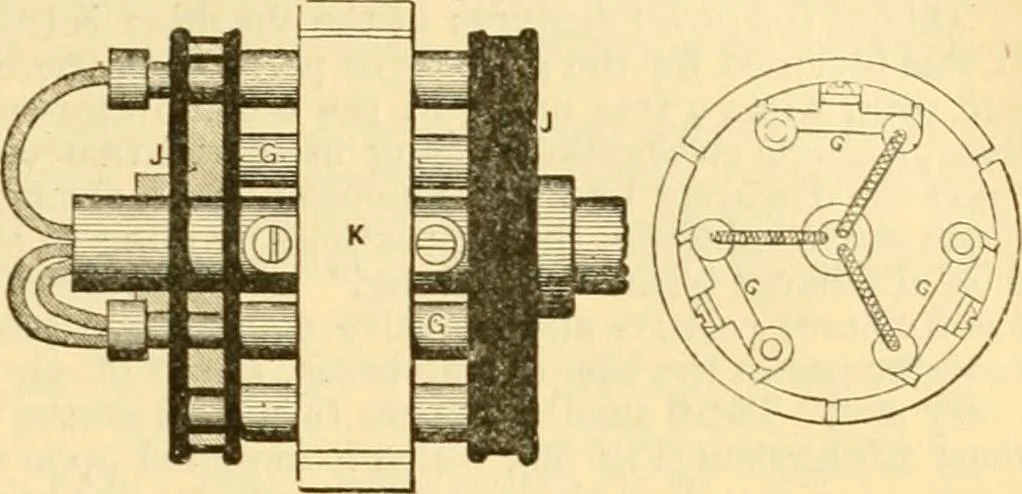

eiideiitiv mounted uiion a metal Iranie, which gives tiie .segment its |)osi-tion. Till! three metal fraines r/ <i (I (Figs. 32 and 33), for liie sujpjiort of tiie .segments, arcmounted in tw<j metal flanges .7-/, but tliorouglily insulated from tiiem. Jlie flanges d J arethemselves borne… … Figs. 3i, 33.—Dynamo-frame. side of a segment, K. The wires from the shaft connect to each framework G G G respectively,and consequently there is one wire electrically connected to each segment. Fig. 34 shows diagranimatically thewinding of the armature and also tliemanner of apjilying the brushes…
