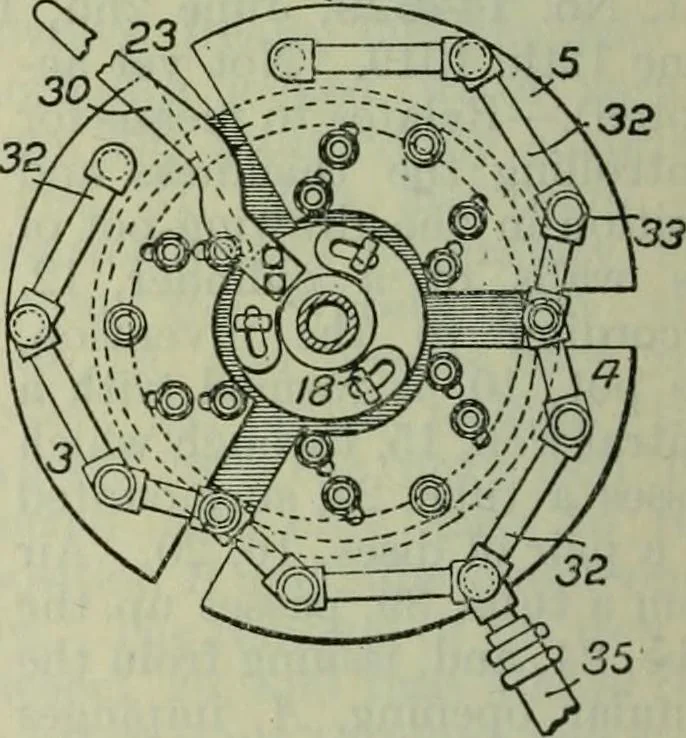

Fig. 85. movable by cams operated by a handle, 16. The plate, 23, ismovable axially by a cam-jflate, 18, fitted with a handle, 30. Inoperation, the sectors, 3, 4, 5, are closed and the plate, 23, islowered to the position shown by dotted lines in Fig. 85. Thebait is then lowered into the molten…
