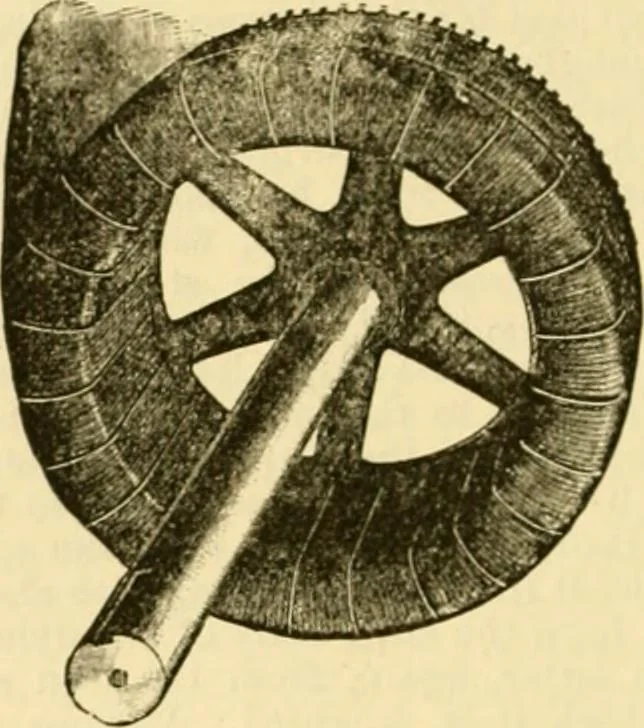

^S^. … Fig. 45—Field-iuaKiift. Fig. 46.—Armature. spaces. It is attached at the commutator end to a brass support called the spider, connectedwith the shaft. It is series-wound, in one closed circuit, with insulated copper wire of suitablesize, the coils being connected bv radial arms with the commutator…
