Appletons' cyclopaedia of applied mechanics: a dictionary of mechanical engineering and the mechanical arts (1880)
D. Appleton and Company, Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 940

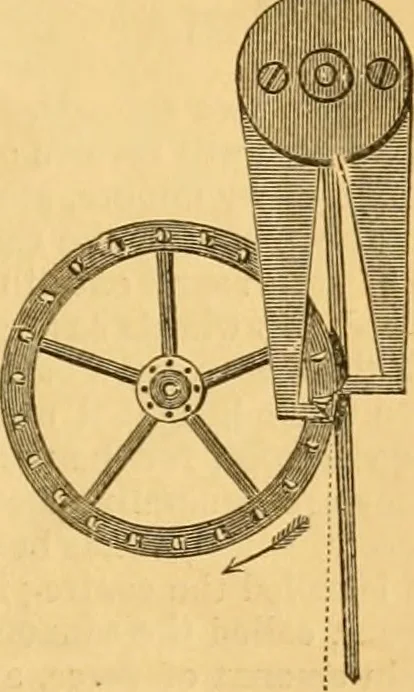

the centre e ; and upon being struck by the teeth of the scape-wheel in the direction of e, no recoilis produced, neither is there any impulse given to the pallet until the pendulum swings far enoaghto the left to bring the tooth upon its impulse face. Fig. 4226 represents Lepautes pin-wheel…
