[Bubier], Edward Trevert, 1858- [from old catalog] · Lynn, Mass., Bubier pub. co. · leaf 73

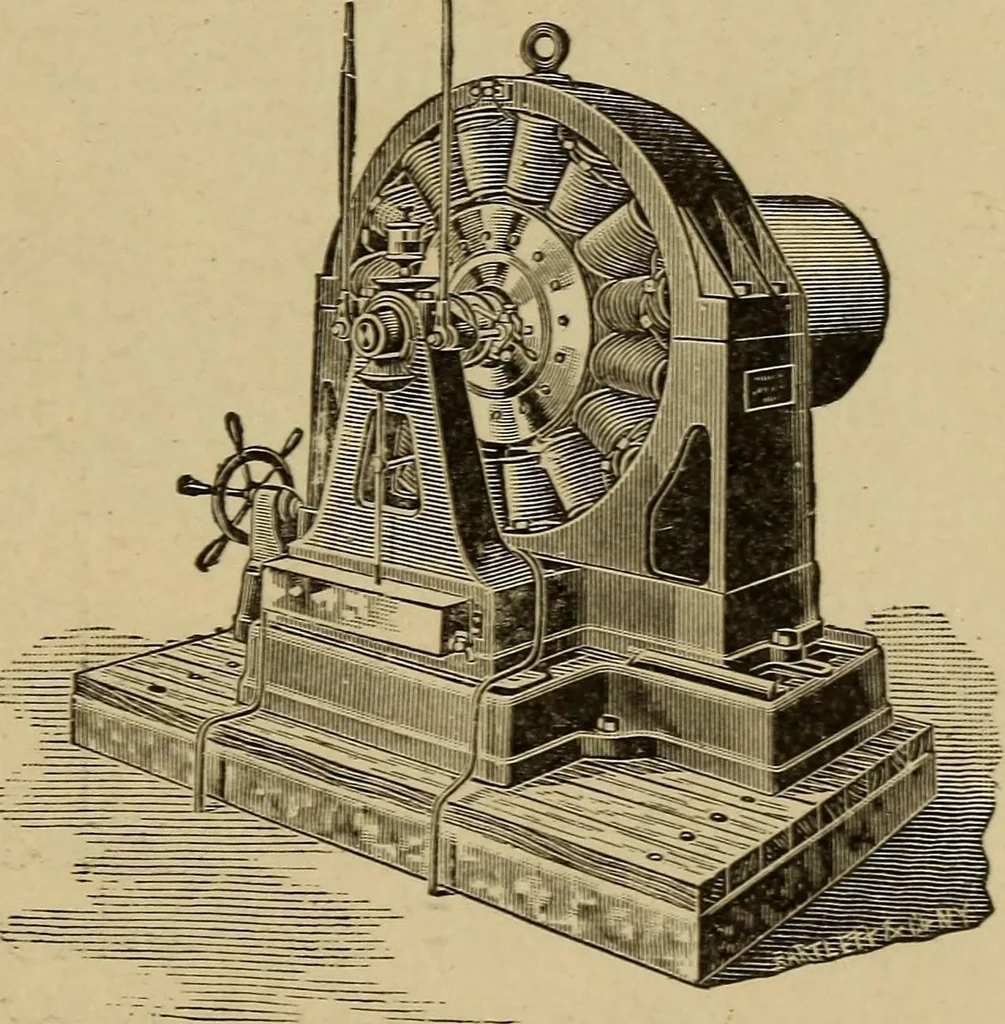

ating Current Dynamofor generating the alternating current is repre-sented by the accompanying illustration. The field is composed of a series of radial polepieces having alternate polarity, the cores of whichare cast solid with the base and cap respectively.The field coils are a series of bobbins,… … THE WESTINGHOUSE ALTERNATING CURRENT DYNAMO. The body of the armature is of laminated ironplates freely perforated for ventilating purposes.A single layer of wire is wound in flat coils backand forth across the face of the armature, in a di- 72 ELECTKICITY AXD ITS rection parallel to the shaft,…
Electricity
