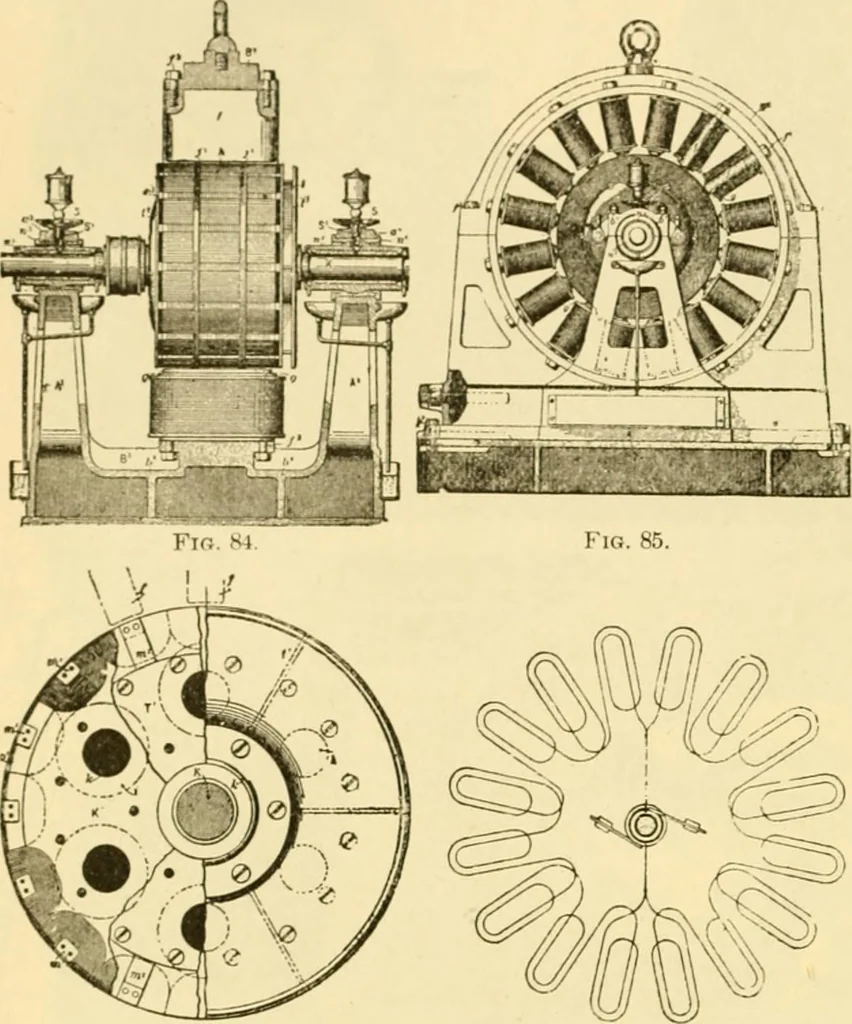

ofthe armature, and there areno crossing wires at the ends,as in the Siemens, nor wirein the interior of the ring, asin the Gramme : the endsbeing exposed for ventilationthrough the tubular open-ings in the core. Adjacentcoils being wound opposite-ly, as in the field-magnets, asshown in Fig. 87,… … Fig. m. Fig. ST Figs. 84-87.—Westinghouse dynamo—details. and firmly bound with the bands/y. nets being only -^ in., and there being only a single layer of wire on the armature both the coils and the core are in close proximity to the field-magnets, and hence the mag-
