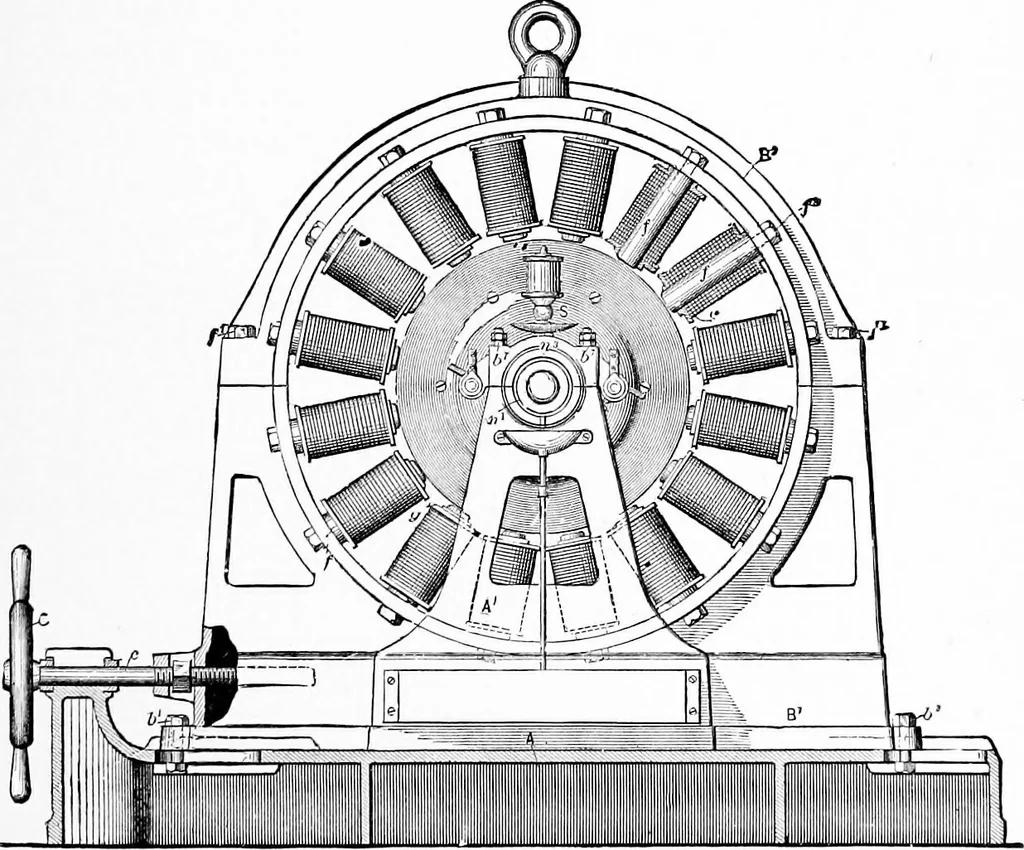

tudinallyon the base by means of the screw, c, provided with thehandwheel, C. Sixteen magnet cores,/, project inwardly ELECTRIC LIGHTINC. S3S from the magnet frame, B, on radial lines meeting in theaxis of the armature. The field magnet coils are placedon the cores,/, and secured by collars, g. The… … Side View of the Westingliouse Dynamo. The core of the armature of this machine consists ofa cylinder built up of disks of thin sheet iron, insulated fromeach other and clamped firmly together. Around tiie cir-cumference of the cylindrical core are arranged ffat coils ofwire, one layer deep. These…
