Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 253

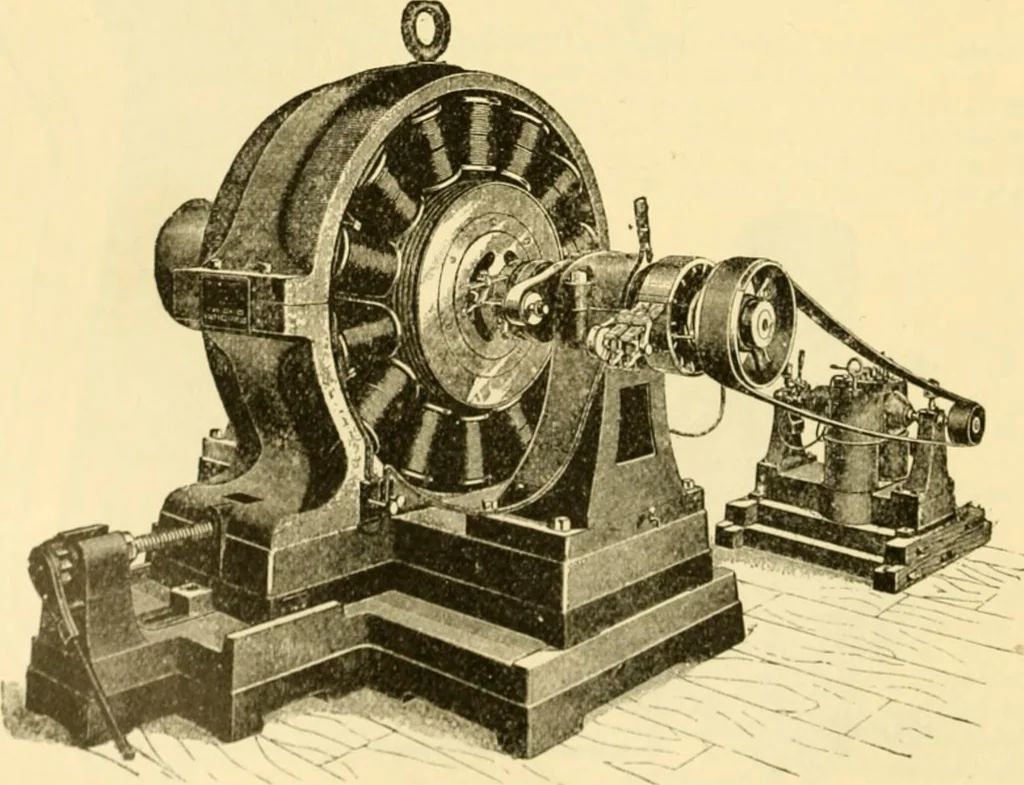

Fig. m. Fig. ST Figs. 84-87.—Westinghouse dynamo—details. and firmly bound with the bands/y. nets being only -^ in., and there being only a single layer of wire on the armature both the coils and the core are in close proximity to the field-magnets, and hence the mag- … Fio. 88.—Thomson Houston alternatinf; current dynamo. DYNAMO-ELECTRIC MACHINES. 235 netic and electric reciprocal actions are at the maximum, and there is no dead or partiallyinactive wire in the interior; all the wii-e, except a very small percentage on the ends, beingexposed to the full action of…
