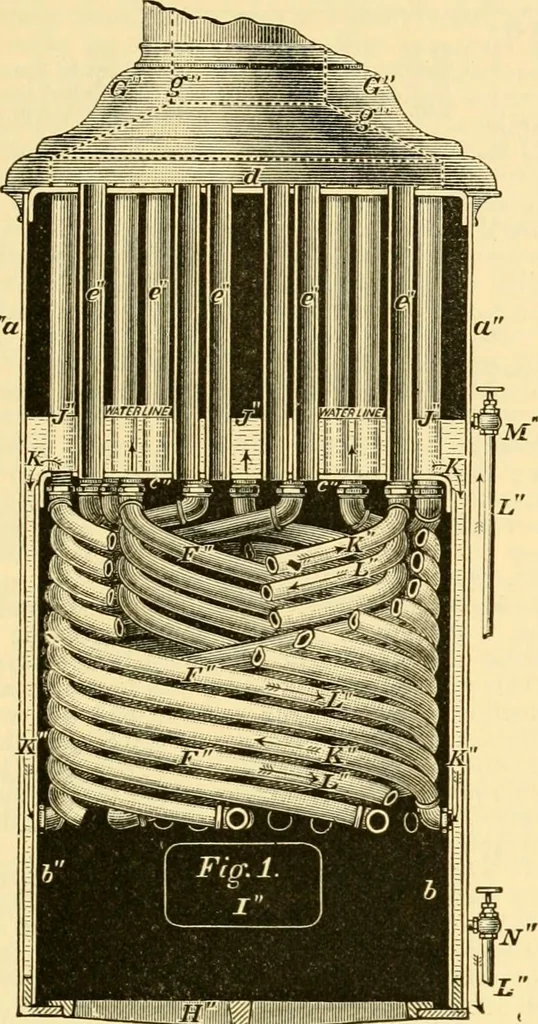

he numl)er of rows is determined by the size ofthe boiler and the amount of steam required. G U is the ornamental dome; g g is the smoke- I ENGINES, FIRE, STEAM. 261 bonnet and pipes for concentrating the hot escaping products of combustion for the purposeof making a draft of air through the fuel.… … tion of it when on the heater, which is direct-ly opposite. The outside pipe connected atabout the water-line is the outlet from theheater, and the inlet to the boiler, which car-ries the heated water over the crown-sheet,where, as it gets cooler, it enters the coils andthen the leg, and from there…
