Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 579

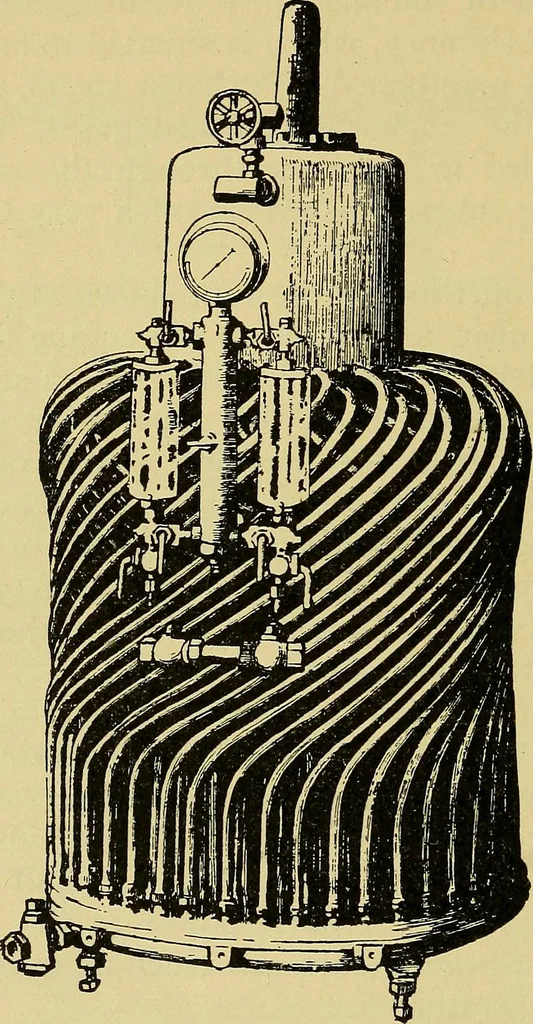

pal parts; a circular trunk tube at thebase, from which a large number of curved tubes lead to the 566 SELF-PROPELLED VEHICLES. steam drum shown above. In addition to these the trunk tubeis also connected to the bottom of the drum by a water connect-ing arch, both legs of which are cast in one… … Fig. 409.—The Lifu Steam Boiler, showing arrangement and inclinationof the tubes. The central steam drum terminates in two legs at thebottom, which are connected at either side to the annular mud-and-waterdrum at the base, thus completing the circulation. metal union nuts, the same kind of joints…
