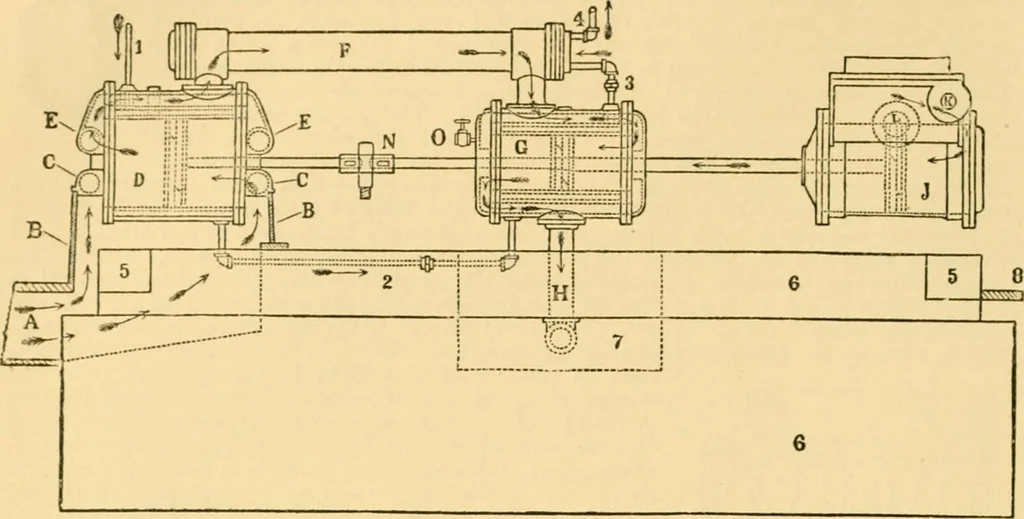

when doing work at slow speed. The ^orwalk Compound Air-Comprp-^snr is shown in outline in Fig. 8. The lettermg onthe cut refers to the several parts as follows: A, inlet conduit for cold air; B, removable2 18 AIR-COMPRESSORS. hoods of wood; C\ inlet valve; D, intake cylinder; E, discharge-valve;… … Fig. 8.—Norwalk compressor. after stopping with all pressure on the pipes; 1, cold-water pipe to cooling jacket; 2 and3, water-pipe ; 4, water overflow or discharge; 5, stone on end of foundation : G, foundation :7, space to get at underside of cylinder; N, floor-line. Arrows on the water-pipes…
