Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 320

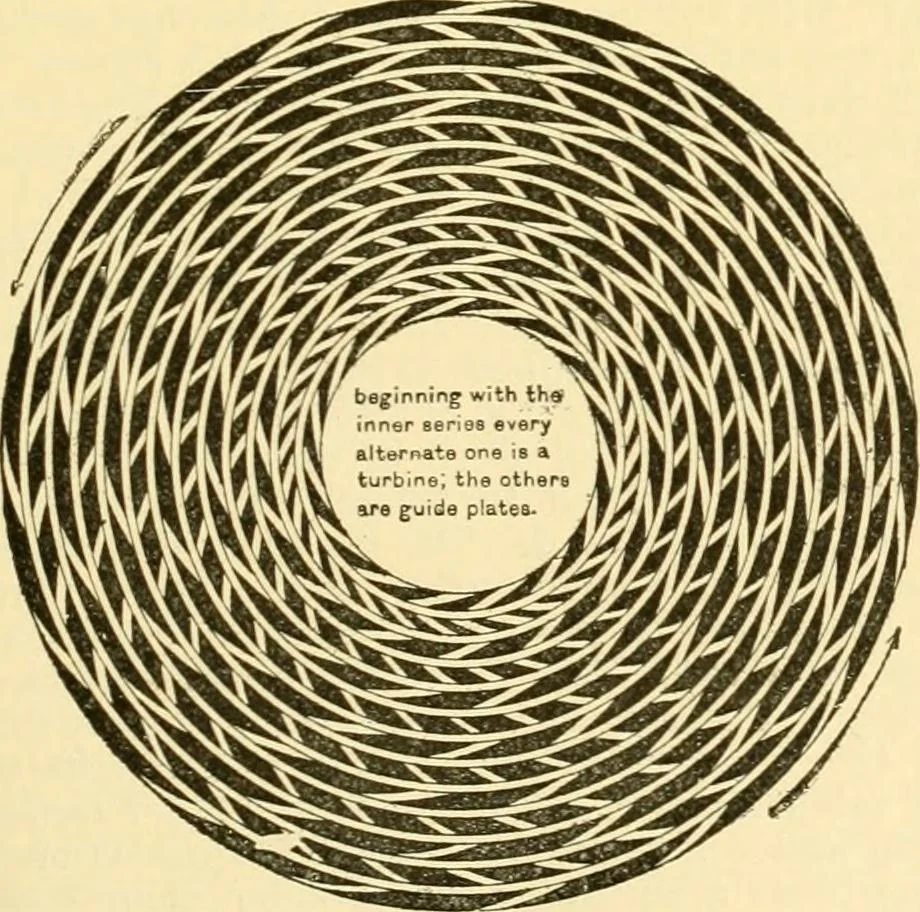

Fig. 13.—Dow steam turbine. … Fig. 14.—Dow steam turbine. 300 ENGINES, STEAM, STATIONARY RECIPROCATING. the partition. The disk part of each face-plate stands clear from its partition, and is per-forated by tlirce concentric rows of holes, and the inner face of each face-plate is channeled in concentric grooves betweenthe…
Mechanical engineering
