Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 326

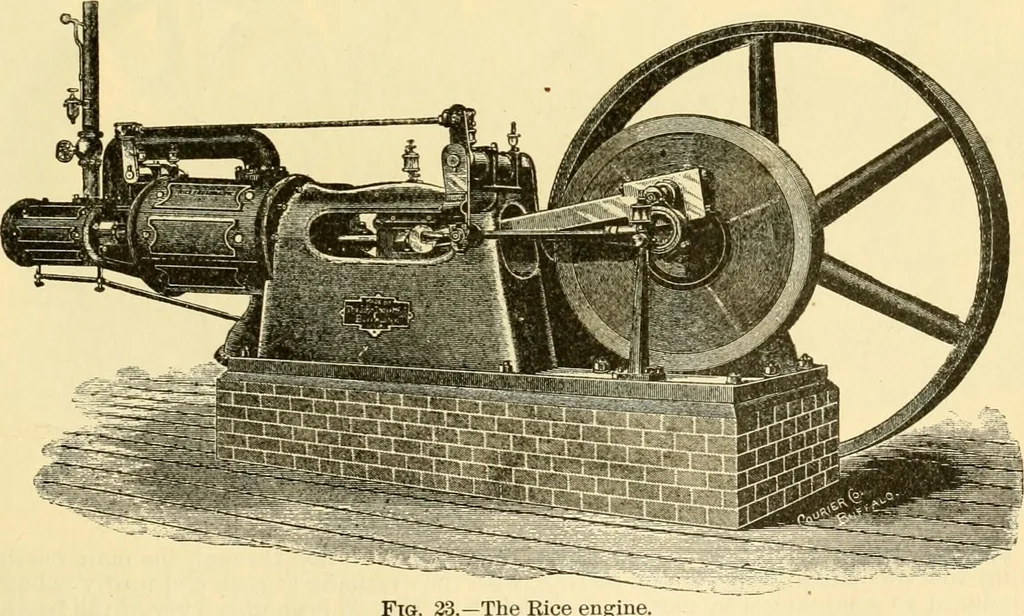

oth for steam admission and exhaust. The throttle-valve, shown in Fig. 22, consists of a flat seat, circular in form, having asemicircular opening through it, and a valve whose face is a counterpart of the valve-seat,and by means of a semicircular bevel-gear on its upper surface and a pinion it can… … Fig The Rice engine. The Rice Automatic Engine.—Fig. 23 illustrates the Rice tandem compound-engine, oneof several styles built by the John T. Noye Mfg. Co., of Buffalo. N. Y. It is of the same gen-eral construction as the Rice single-cylinder engine. Both valves are operated by the same20 306…
Mechanical engineering
Internet Archive · Boston Library Consortium · Public Domain Mark 1.0. Free to use for anything.
