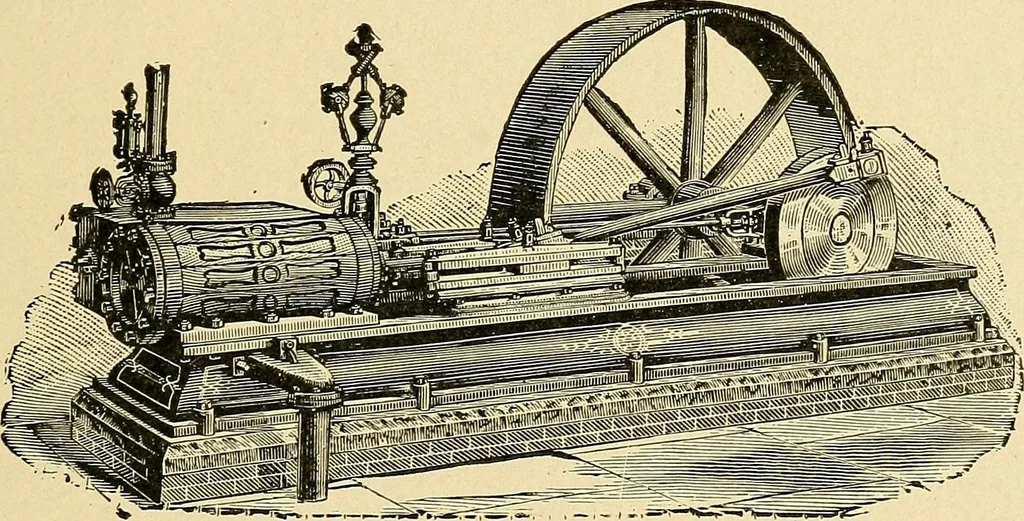

ing that you measure3*2 of an inch, letting the valve raise g-1^ instead of j$ of aninch without moving the crank. Take exhaust cam No. 1and set the same T3g of an inch, in same manner as valveNo. 4. Make set screws in cam tight. The caps to bearings of rocker-arm shaft which connectcam levers 2… … Figure 35.Riding Cut-off Engine. RIDING CUT-OFF ENGINE. What is the principal feature about a riding cut-off engine ? It has two valves and two eccentrics. What is the function of the main valve? It regulates the admission, release, and compression. What is the function of the rider valve ? 142…
