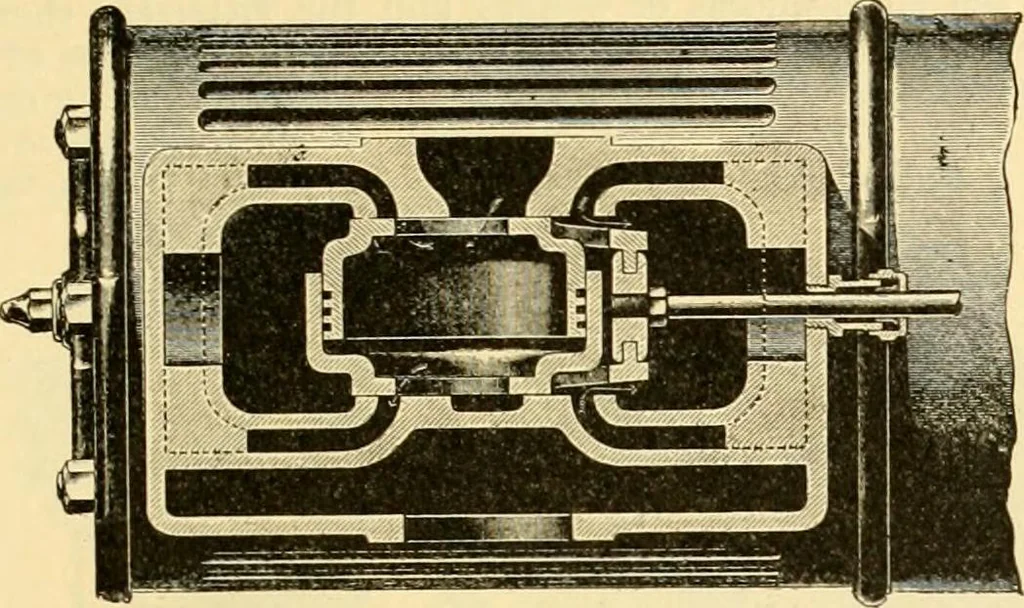

is an exactduplicate of every other one, anil can Ije (juickly removed and re])lac(d. The liners are usedin the main-bearing, the cr().s.s-head, and the erank-pin. In the two latter places they arebedded in brass boxes, which are free to expand. Thus, should the pin heat, the brass, having ENGINES,… … Fig. 28.—Ball engine steam-chest. The Ball Engine.—Fig. 27 represents a double-tandemcondensing triple-expansion engine made by tiie Ball EngineCo., Erie. Pa. This engine is built in sizes of 300, 400, 500,GOO, and 700 horse-power. Fig. 28 shows a section through the steam-chest and valveof the…
