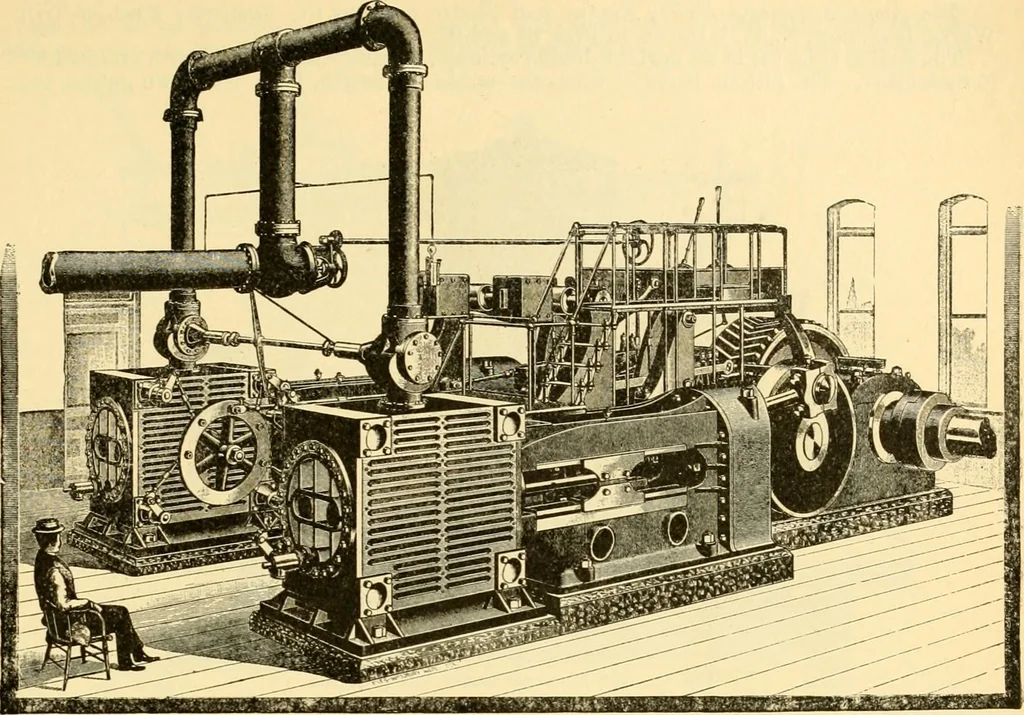

Fig. 6-3.—The \\illans engine ans oi n iiair ot slirou(hThe Williird (litiulntsu in;/ /Jiii/ine, made by (. P. Willard <S: Co.. Chicago, is shown in Fig.C4, It differs (i-orii an ordinary steam-engine in the fact that while steam is made in the ENGINES, STEAM, STATIONARY EECIPROCATING. 319 … Fig. 63.- -Reversing rolling-mill engine. generator, which is a part of the machine, the only function of the steam is to create, by con-densation, a vacuum, which is the motive-power. The engine is double-acting, a vacuumbeing created alternately at each end of the cylinder. There is no greater…
