Experimental engineering and manual for testing (1903)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & sons; [etc., etc.] · leaf 64

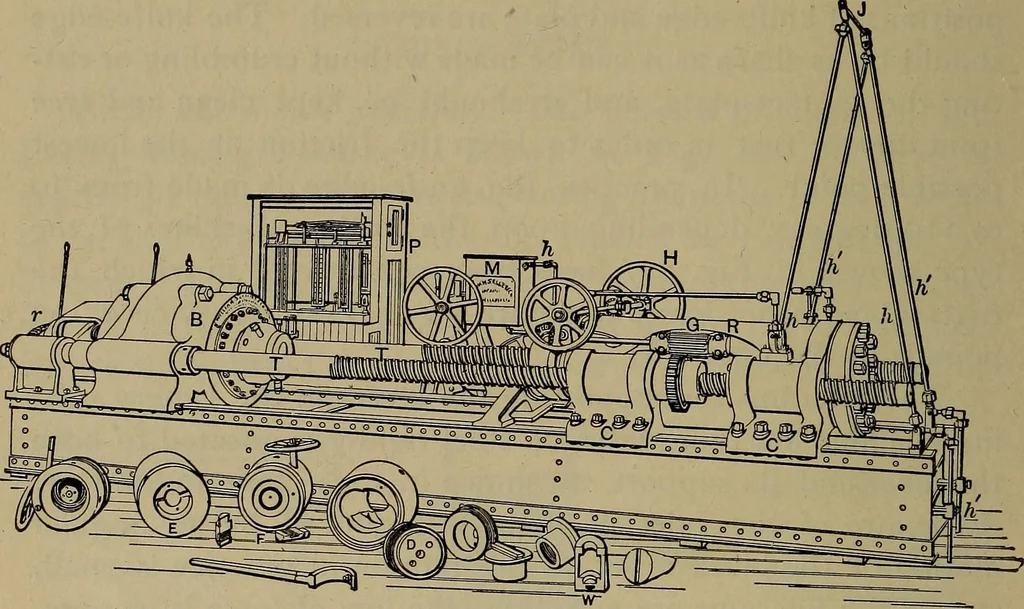

raulic support as used in a ver-tical machine is shown in Fig. 20, its method of operation inFig. 22n, Second, the peculiar steel-plate fulcrums, whichhave been described. These together with excellent work-manship throughout have served to make the Emery testing-machine an instrument of precision… … Fig. 22/. In this figure M is the pump for operating the hydraulicpress, hh the connecting piping, TT screws forming a partof the frame and used for adjusting the position of the pressfor different lengths of specimens, and of sufficient strength towithstand the shock due to breaking; Pis the…
