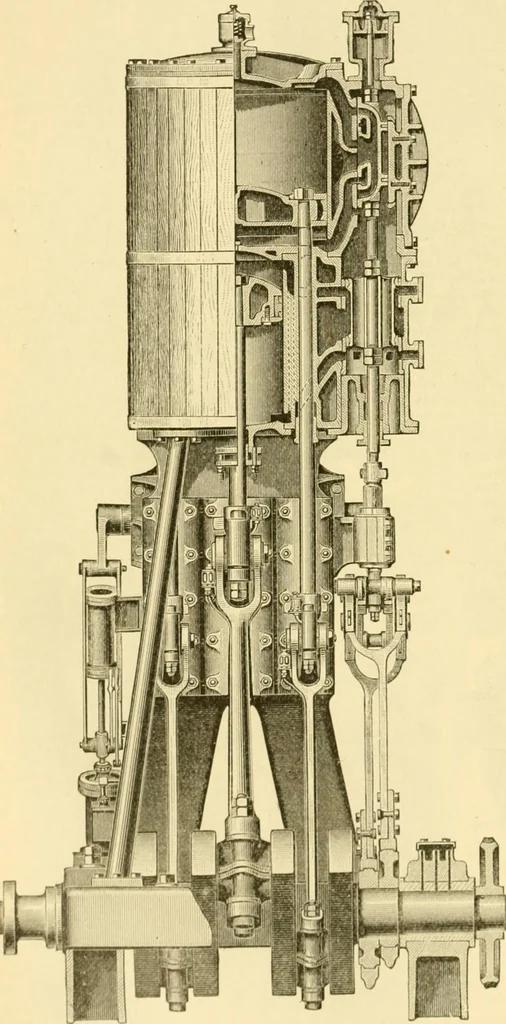

ion. One governor con-trols steam-valves on bothhigh and low pressure cyl-inders. The wrist - platemotion is diiven by twoeccentrics, making inde-pendent actuation for steamand exhaust valves, and isknown as the long-rangecut-olT. The engine is de-signed for electric railwayand cable work wh(>re… … Fio. -Tliu \V(.lls halaneed conipoiMul engine. EXGINES, STEAM, STATIOXARY KECIPEOCATING. 327 between the high and low pressure cylinders by means of a receiver-pipe, which connectswith a flat passage secured on the side of the low-pressure cylinder leading to the steam-chest. The engine illustrated…
