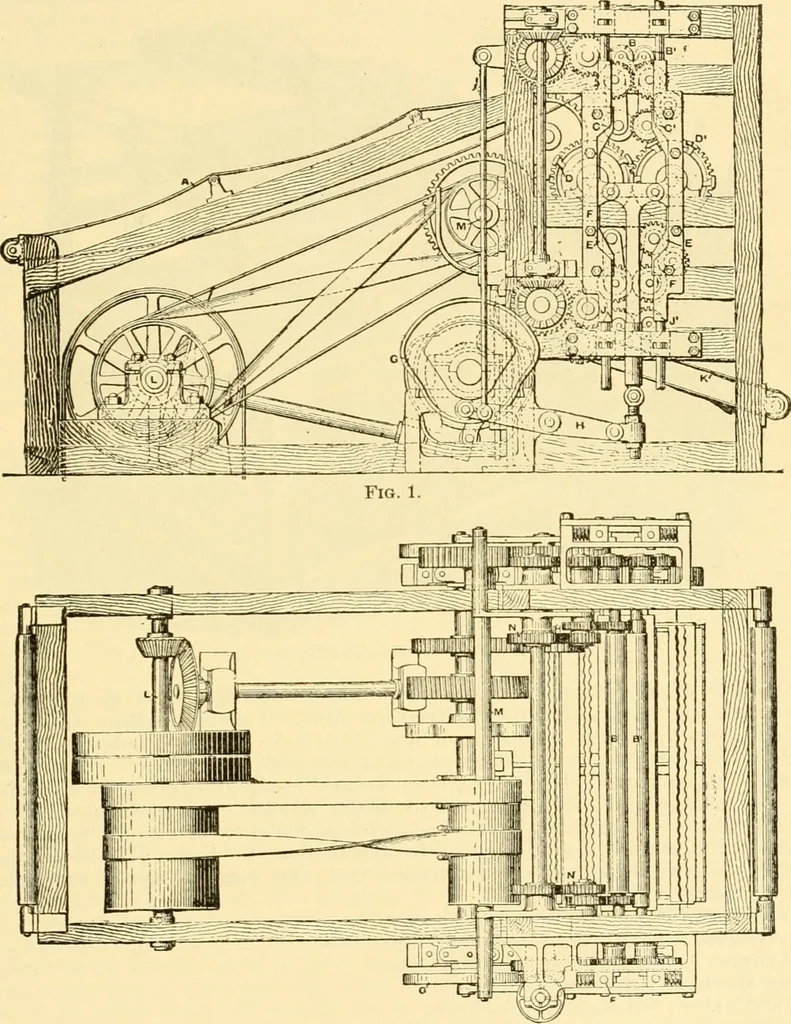

ng heckling-maehine. The strike of flax is se-cured between a pair of India-rubber gripping-rollers C C, which bring it into contact witha pair of rapidly revolving beaters D D\ After this operation has gone on for a given timethe beaters are caused to revolve in the opposite direction, the… … Fig. 2.Figs. 1, 2.—Spiegelberg flax-scutching machine upon before they are allowed to proceed downward to the delivery roller J J\ and thenceto the delivery-apron K. L is the first-motion shaft, carrying fast and loose pulleys, con-nected with siniilar pulleys on the shaft M, from which the beaters…
