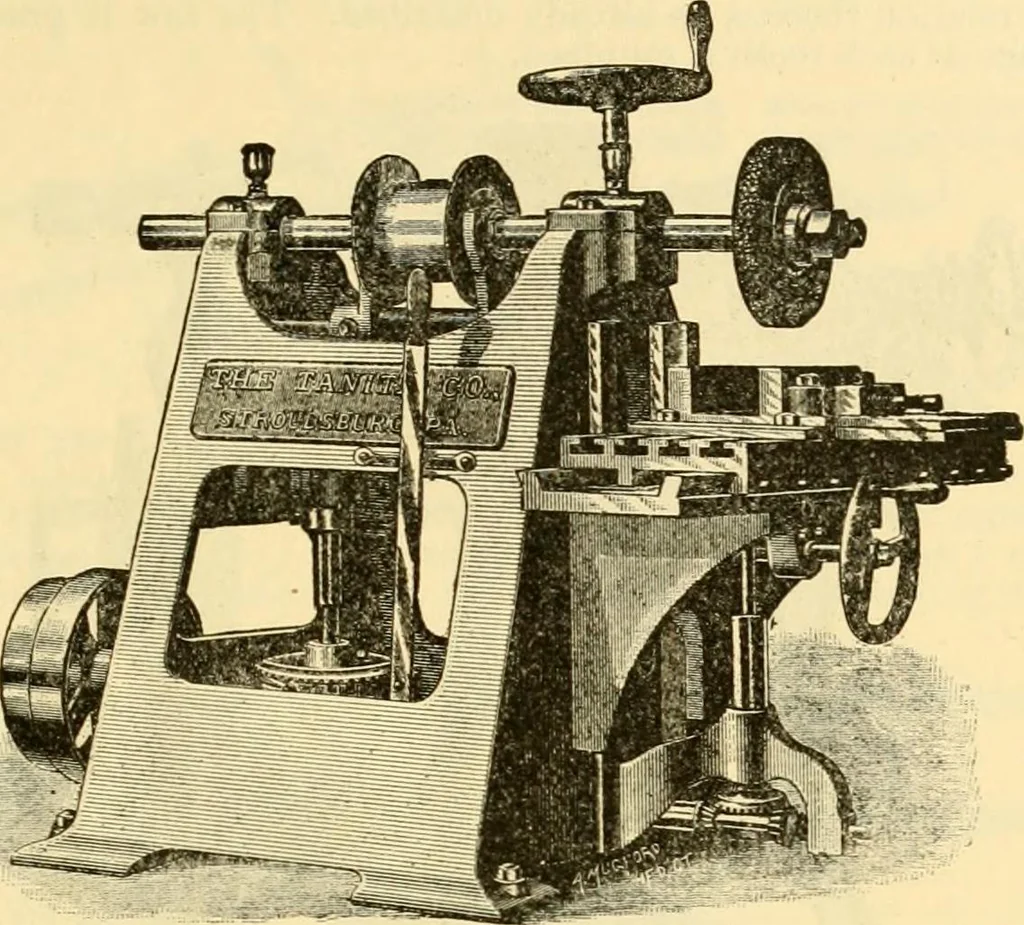

Ki(». .i. —(Jiilter and reunier-grinder. GRINDING-MACHINES. 409 is swiveled a yoke, to which is journaled a shaft C, carrying pulleys D. These transmit mo-tion from the driving-pulleys A to the pulley E, on the emery-wheel shaft. The shaft Cpasses through a metallic block F, which fits loosely upon… … Fig. C—EiiKr-ry planer. point on its under side, to form a bearing for an adjusting screw. This block is also boredto receive the arm G, which supports the grinding-wheel. The arm G is movable in theblock, and can be fastened in any desired position by the set screw H. 7 is a counterbalance
