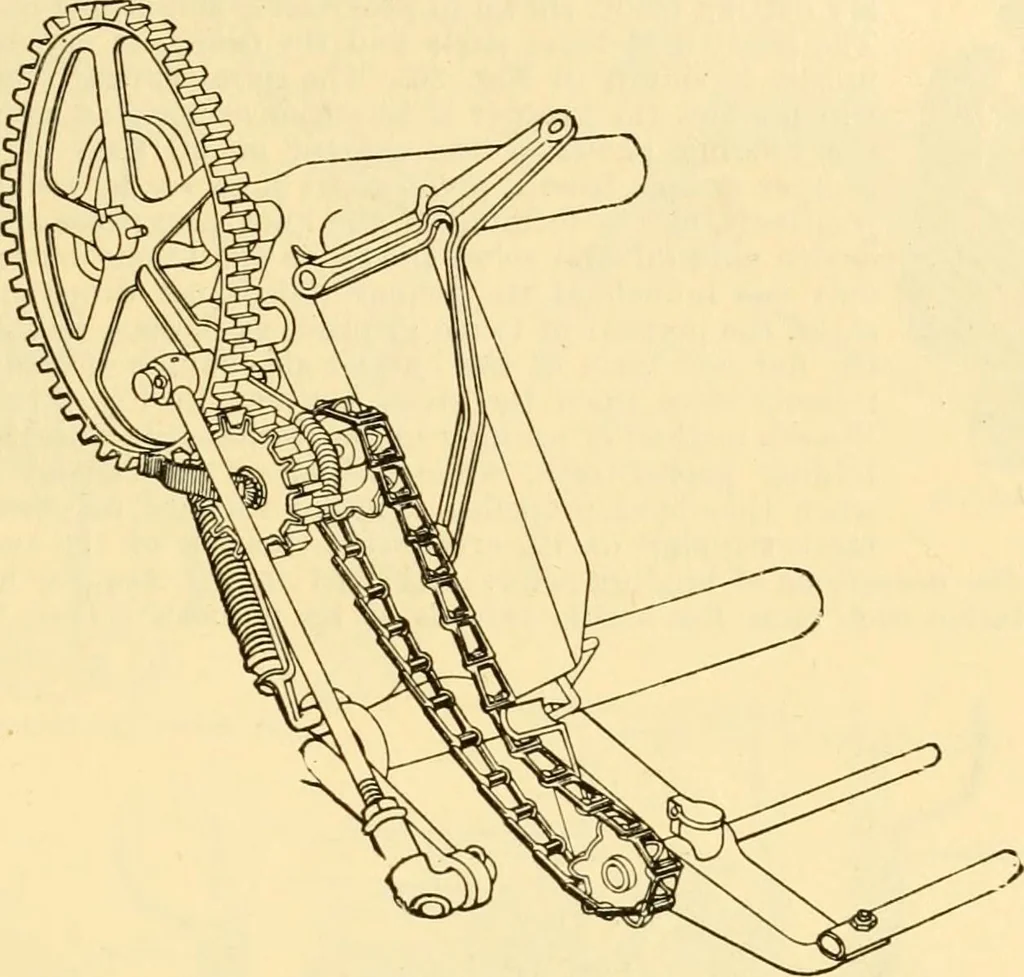

HARVESTING-MACHINES, GRAIN. 423 justed for given tightness of band, position of band, and size of sheaf, the binder is self-regulating. The Holmes Binder.—The knotter (Fig. 20) of the Holmes binder is a hollow shell rotatedby its pinion and having a barbed volute hook centered on its lower end in a… … FiG. 18.—Chaiu driving binder mechanism. versal with its axis. The shell contains a spindle carrying at its lower end a secondary hookaccommodated to the bottom surface of the primary hook and normally in a state of pressureagainst the barb, held there by a spiral spring at the top connecting the…
